Amphenol 031-6827

Amphenol RF 031-6827 TNC Jack, LMR-240, 50 Ohm, 6 GHz

MPN 031-6827
Active

Amphenol RF TNC jack, female socket, 50 Ohm, crimp/solder for LMR-240, DC-6 GHz, 500 cycles, bulk, includes ferrule.

$10.7100 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

031-6827 key specifications
ParameterValue
MountingFree Hanging (In-Line)
Connector typeJack, Female Socket
Fastening typeThreaded
Frequency - max6 GHz
Cable groupLMR-240
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Includes2 pcs - 1 Connector, 1 Ferrule

All specifications

031-6827 additional specifications
ParameterValue
Impedance50Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

TNC Jack for LMR-240 Cable, 50 Ohm to 6 GHz

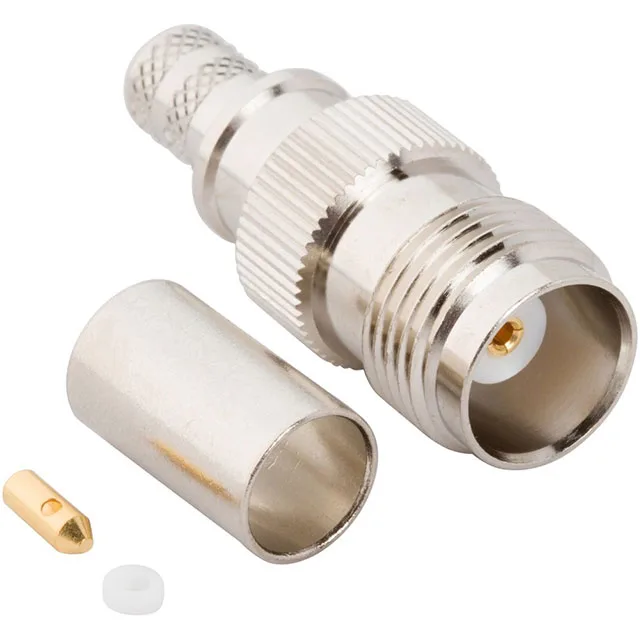

The connector ships as a two-piece kit: the jack body plus a crimp ferrule sized for the LMR-240 jacket diameter. Rated at 50 Ohm impedance with a frequency ceiling of 6 GHz, this is a standard RF interconnect for applications that need a threaded, weather-resistant mate — the TNC interface is the threaded variant of the BNC, offering better vibration resistance and a more consistent impedance match through the coupling nut.

This connector is built for LMR-240 cable specifically — the ferrule ID and crimp die set are matched to that cable's jacket and braid diameters. The shield termination is crimp, not clamp, so the braid is captured uniformly around the ferrule for consistent RF performance through the ground path. The threaded coupling nut (TNC standard) gives a positive mechanical lock that resists vibration loosening — a meaningful difference from a push-on BNC in a mobile or industrial enclosure. The silver housing colour is the natural nickel finish; no paint or coating that could flake into the RF path.

MPN
031-6827
