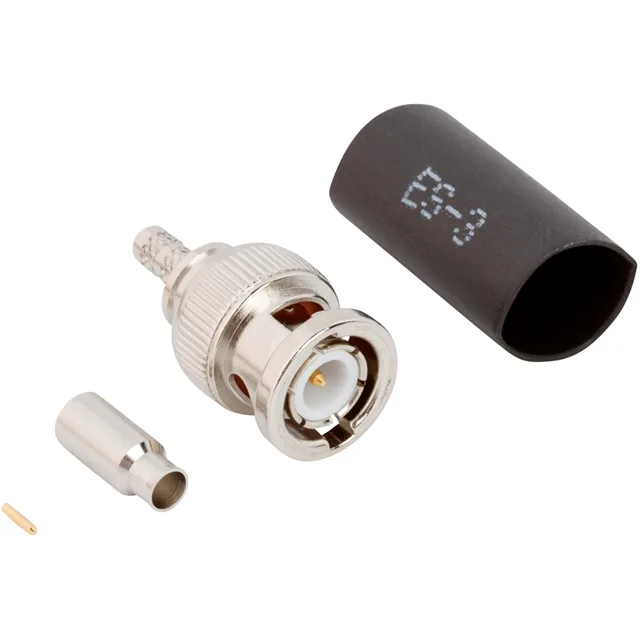

Amphenol RF 031-6925 BNC Plug, 50 Ohm, 6 GHz, IP67

MPN031-6925
Active

Amphenol RF BNC series, 031-6925, plug male pin, 50 Ohm, 6 GHz, IP67, for RG-316, solder contact, crimp shield, bayonet lock.

$14.2000Ref. price · indicative, final on quote
031-6925 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-6925 Technical Specifications
ParameterValue
SeriesBNC
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Frequency - max6 GHz
Ingress protectionIP67 - Dust Tight, Waterproof
Cable groupRG-316
Operating temperature-40°C~85°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBag
Impedance50Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

BNC Plug for RG-316, Sealed to IP67

The 031-6925: The IP67 rating — dust-tight and waterproof when mated — sets this plug apart from standard BNCs, making it suitable for outdoor antenna feeds, military comms, or industrial sensor links where moisture ingress is a risk.

This plug is built for RG-316 cable, a 50 Ohm double-braid coax with a 0.102-inch diameter.

Durability and Sealing

The brass body with nickel finish resists corrosion, and the IP67 seal means the mated pair can survive temporary submersion — a practical advantage for portable or outdoor RF gear that sees rain or washdown.

Frequently asked questions

What cable does 031-6925 fit?

The 031-6925 is designed for RG-316 coaxial cable. The centre contact is soldered and the shield is crimped.
