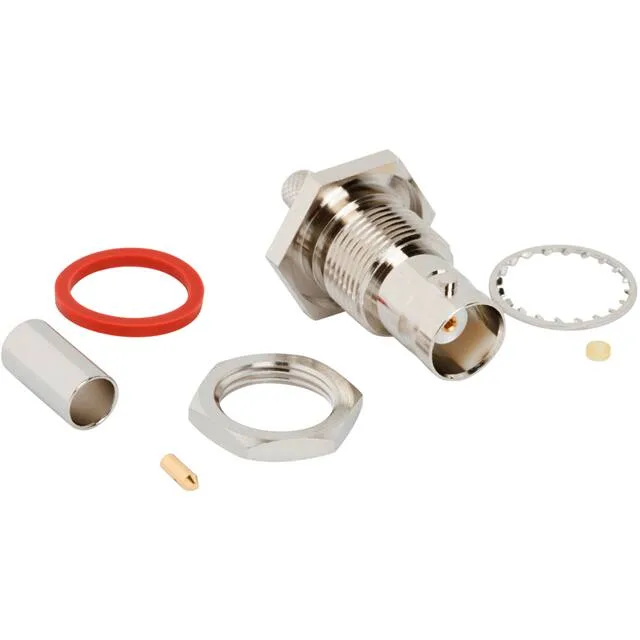

Amphenol 031-6926 BNC jack, female socket, 50 Ohm, 6 GHz, IP67, panel mount bulkhead, RG-58, solder contact, crimp shield, nickel body, gold centre contact.
| Parameter | Value |
|---|---|
| Series | BNC |
| Mounting | Panel Mount |
| Connector type | Jack, Female Socket |
| Fastening type | Bayonet Lock |
| Frequency - max | 6 GHz |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Bulkhead - Front Side Nut |
| Cable group | RG-58 |
| Operating temperature | -60°C~165°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Parameter | Value |
|---|---|
| Center contact material | Beryllium Copper |
| Package | Bag |
| Impedance | 50Ohm |
| Body finish | Nickel |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Solder |
| Center contact plating | Gold |
The 031-6926: The IP67 seal (dust-tight and waterproof when mated) makes this a bulkhead connector for outdoor antenna feeds, radio enclosures, or washdown equipment, not a bench-top patch panel part.
The nickel-plated brass body and silver housing colour are standard for outdoor BNC hardware.
Yes, the 031-6926 is listed for the RG-58 cable group. The centre contact is solder-terminated and the shield is crimped — both sized for RG-58.
50 Ohm nominal, rated to 6 GHz maximum frequency.
500 mating cycles, supported by the gold-plated beryllium copper centre contact.
