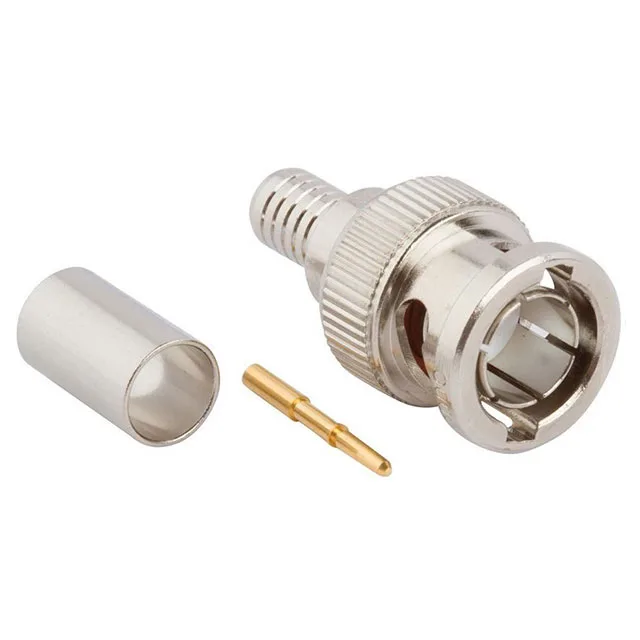

Amphenol RF BNC plug, 75 Ohm, plug male pin, crimp or solder termination, free hanging, bayonet lock, 1 port, 4 GHz, 0.2 dB insertion loss, 500 mating cycles, nickel body, gold center contact, bulk pack includes connector + contact + ferrule.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pin |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 4 GHz |
| Cable group | RG-59, 59B, 62, 140, 210, Belden 8241, 8263, 8279, 9209 |
| Operating temperature | -65°C~165°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Brass |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 75Ohm |
| Body finish | Nickel |
| Mating cycles | 500 |
| Insertion loss | 0.2dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp or Solder |
| Center contact plating | Gold |
The center contact can be crimped or soldered, giving the harness builder flexibility depending on tooling and production volume. The PTFE dielectric maintains consistent impedance through the termination zone.
Yes, the package includes three pieces: one connector body, one center contact, and one ferrule — everything needed for a single termination.
Submit a request for quote to confirm current pricing and availability.
