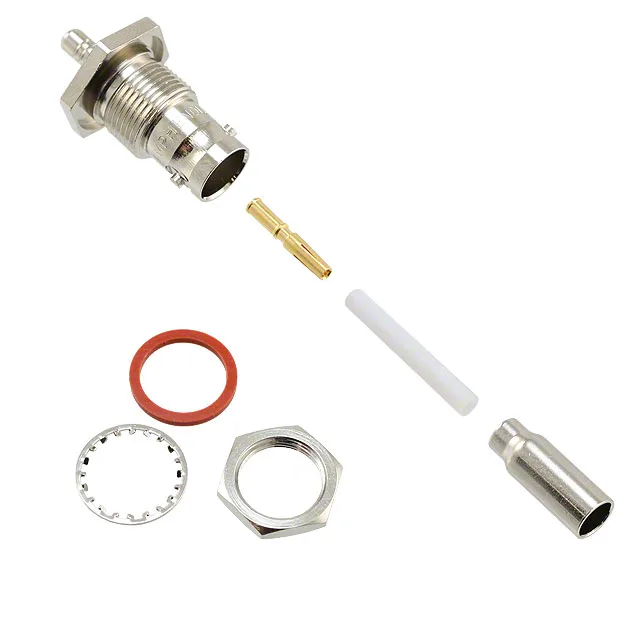

031-70016 — Amphenol product photo
Amphenol

Amphenol RF 031-70016 BNC Jack, 75 Ohm, 4 GHz, Bulkhead

MPN031-70016
Active

Amphenol RF BNC jack, 75 Ohm, bulkhead mount, crimp termination, 4 GHz max, 500 V, 500 mating cycles, includes lockwasher and nut.

$21.2600Ref. price · indicative, final on quote
031-70016 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-70016 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Mounting featureBulkhead - Front Side Nut
Cable groupRG-179, 179A, 179B, 187, 187A, Belden 9221, M17/94-RG179
Operating temperature-65°C ~ 165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze
PackageBulk
Includes3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Impedance75 Ohms
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp or Solder
Center contact platingGold

Product details

75 Ohm BNC Bulkhead Jack for RG-179 Cables

The 031-70016: It terminates to RG-179, 179A, 179B, 187, 187A, Belden 9221, or M17/94-RG179 cable groups via crimp or solder on the center contact and crimp on the shield.

This jack accepts RG-179, 179A, 179B, 187, 187A, Belden 9221, and M17/94-RG179 — all 75 Ohm cables with a similar dielectric diameter. The shield is crimped; the center contact can be crimped or soldered. The kit includes the connector, lockwasher, and nut, so no extra hardware is needed for a clean panel install.

Electrical and Mechanical Ratings

The 500-cycle mating life suits field-serviceable installations where the connector is disconnected periodically.

Active lifecycle — no end-of-life notice documented. No official replacement or equivalent documented.

Frequently asked questions

What cable does 031-70016 work with?

It works with RG-179, 179A, 179B, 187, 187A, Belden 9221, and M17/94-RG179 cable groups.

Where can I buy 031-70016?

This part is sourced to order against your BOM quantity.
