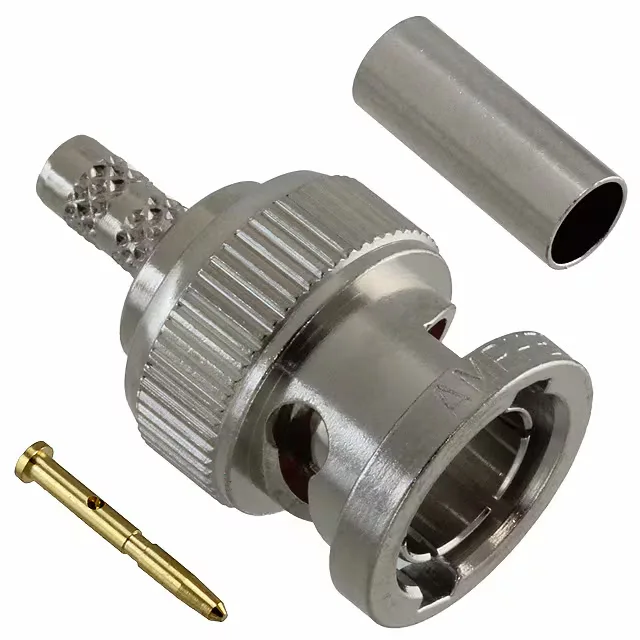

031-70236 — Amphenol product photo
Amphenol

Amphenol RF 031-70236 BNC Plug, 75 Ohm, 2 GHz, 500 V

MPN031-70236
Active

Amphenol RF BNC plug, 75 Ohm, crimp termination, 2 GHz max frequency, 500 V rating, 500 mating cycles, includes connector, contact, and ferrule.

$5.4800Ref. price · indicative, final on quote
031-70236 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-70236 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max2 GHz
Cable groupRG-122, 180, 180A, 180B, 195, Belden 1855, 1865A
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance75Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

Crimp Termination and Kit Contents

The 031-70236: This is a three-piece kit: the BNC shell, the center contact, and the ferrule. The contact itself is also crimped. The brass body with nickel finish gives corrosion resistance suitable for outdoor or industrial cabinet use.

Frequently asked questions

Is 031-70236 a 50 Ohm or 75 Ohm connector?

The 75 Ohm impedance is specified for video and broadcast applications.
