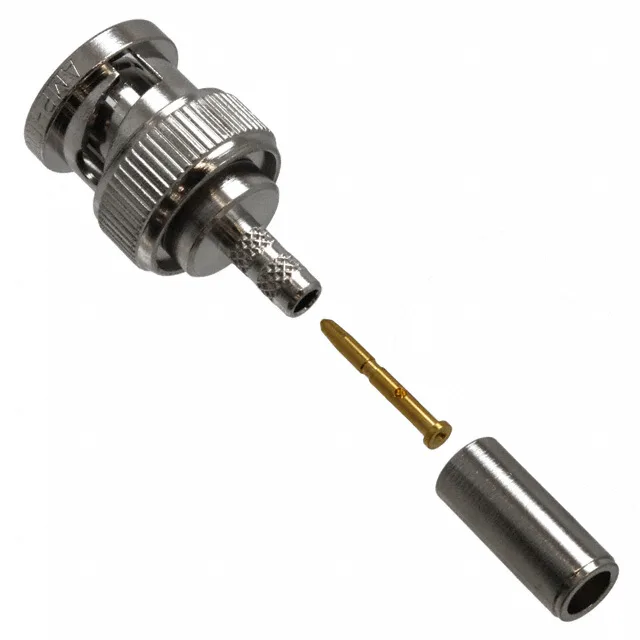

031-70238 — Amphenol product photo
Amphenol

Amphenol RF 031-70238 BNC Plug, 75 Ohm, 4 GHz, NRND

MPN031-70238
NRND

Amphenol RF BNC plug, male pin, 75 Ohm, crimp termination, bayonet lock, 4 GHz max, 500 V, 1 port, bulk package.

$4.3834Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-70238 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Cable groupAT&T 735, 735A, Belden 735A1
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance75Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

BNC Plug for 75 Ohm Video and Data Networks

The 031-70238: It ships as a 3-piece kit containing the connector body, one contact, and one ferrule. The bayonet lock provides quick, secure mating, and the nickel-plated brass body with a gold-plated centre contact supports up to 500 mating cycles.

For new builds, evaluate the 75 Ohm BNC product line from Amphenol RF for a form-fit-function match; the 031-70238 is still a viable option for legacy repairs or BOM fills where the cable group and 75 Ohm impedance are locked.

This plug is engineered for AT&T 735, 735A, and Belden 735A1 cable groups — the crimp dimensions and ferrule are matched to those dielectric diameters and braid configurations. The centre contact is crimped, and the shield is terminated via a separate crimp ferrule.

Electrical and Mechanical Ratings

The 500 V voltage rating and 4 GHz frequency ceiling cover most baseband video and low-power RF links.

Frequently asked questions

Where can I buy the 031-70238?

The 031-70238 is available to order through independent distribution. Submit an RFQ for current pricing and availability — the part is quoted to order, not held available via RFQ confirmation.

Is the 031-70238 obsolete?

The 031-70238 carries an NRND (Not Recommended for New Designs) status. It is not formally discontinued, but it is not recommended for new designs. It can still be sourced for legacy or repair applications.

What cable does the 031-70238 work with?

The 031-70238 is designed for AT&T 735, 735A, and Belden 735A1 cable groups. The crimp ferrule and centre contact dimensions are matched to those cables.

What is the impedance of the 031-70238?

It is not compatible with 50 Ohm BNC connectors without an adapter or impedance mismatch.
