Amphenol RF 031-70239 BNC Plug, 75 Ohm, 4 GHz, Right Angle

MPN031-70239
Active

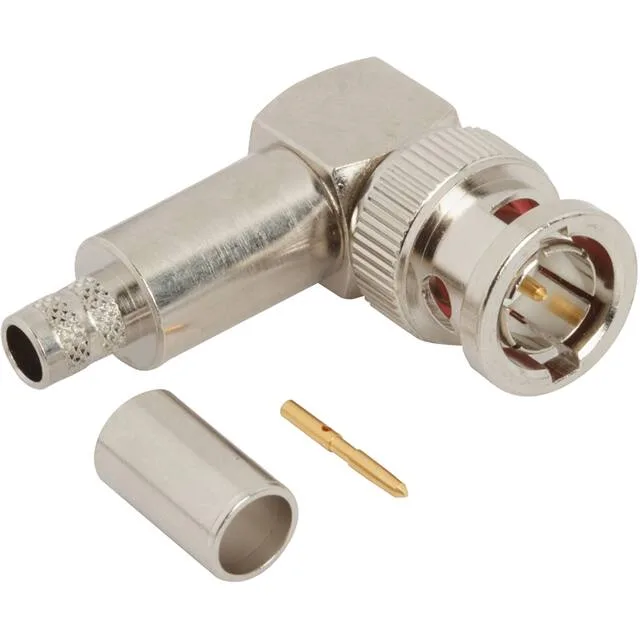

Amphenol RF BNC plug, 75 Ohm, male pin, right-angle crimp, for AT&T 734/734A and Belden 1505A cable, 4 GHz max, 500 mating cycles, includes connector, contact, and ferrule.

$7.3265Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-70239 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line), Right Angle
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Cable groupAT&T 734, 734A, Belden 1505A
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass; Phosphor Bronze
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance75Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

The 031-70239: This is a male pin, right-angle crimp connector designed for free-hanging (in-line) cable termination. The 75 Ohm impedance targets digital video, broadcast, and broadband data applications — think SDI video routers, head-end equipment, and CCTV distribution where the transmission line is 75 Ohm coax.

This plug is specified for AT&T 734, AT&T 734A, and Belden 1505A cable — all 75 Ohm coax types with a nominal 0.180-inch diameter dielectric. The crimp termination uses a hex die for the shield ferrule and a separate crimp for the centre contact. Insertion loss is rated at 0.2 dB, and the frequency range extends to 4 GHz. The right-angle cable exit keeps the coax routed flat against the panel or chassis, useful in tight rack-mount enclosures.
