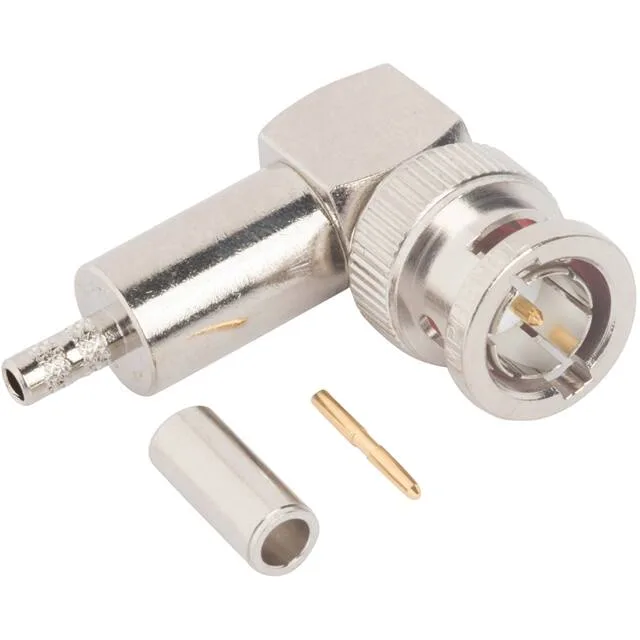

031-70240 — Amphenol product photo
Amphenol

Amphenol 031-70240 BNC Plug Kit, 75 Ohm, 4 GHz, 500 Cycles

MPN031-70240
Active

Amphenol BNC plug kit, 75 Ohm, 1 port, right-angle, crimp termination, bayonet lock, 4 GHz max, 500 mating cycles, includes connector + contact + ferrule.

$9.2203Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-70240 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line), Right Angle
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Cable groupAT&T 735, 735A, Belden 735A1
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass; Phosphor Bronze
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance75Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

75 Ohm BNC Plug Kit for AT&T 735A Cable Runs

The Amphenol 031-70240 is a BNC plug kit — a 75 Ohm variant, not the standard 50 Ohm BNC found in most test equipment. That 75 Ohm impedance matches it to video, broadcast, and telecom cable systems like AT&T 735, 735A, and Belden 735A1. Bayonet lock secures the mate — a quarter-turn and it's locked, no tool needed.

The cable group compatibility is specific: AT&T 735, 735A, and Belden 735A1. Those are 75 Ohm coax cables with a nominal impedance that matches the connector. Using a different cable changes the impedance at the crimp point and degrades the return loss.

Durability and Termination

The brass body with nickel finish gives a corrosion-resistant shell that grounds through the bayonet lock.

Frequently asked questions

What does the 031-70240 kit include?

Enough to terminate one cable end.
