75 Ohm Mini BNC for Broadcast and CCTV Coax

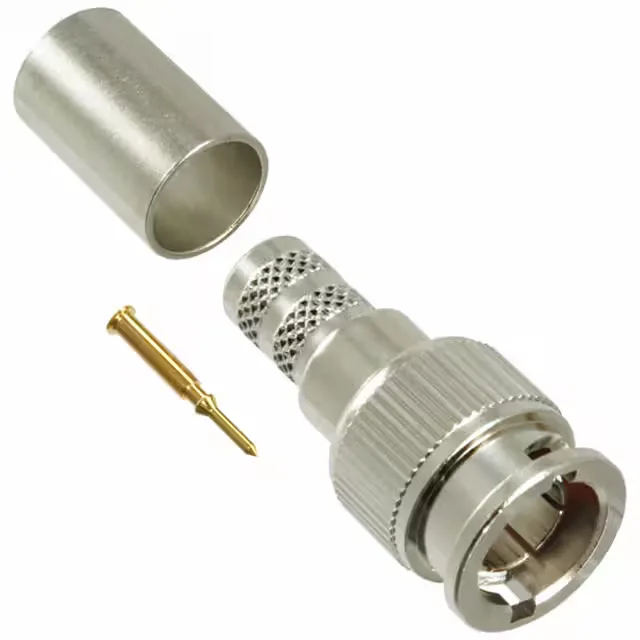

The Amphenol RF 031-70257 is a 75 Ohm mini BNC plug, male pin, built for video-signal coax like Belden 1694, 1694A, and 9248. It ships as a 3-piece kit — the connector body, the center contact, and the crimp ferrule — so one line item covers the whole termination. The 75 Ohm impedance marks this as a video-grade BNC, not the 50 Ohm RF standard; use it on SDI, composite video, or broadcast reference runs where the impedance match keeps return loss in check.
Cable Prep and Crimp Fit
Shield and contact are both crimp-terminated. The ferrule crimps over the braid; the center contact crimps onto the center conductor.
