Mini BNC Plug for 75 Ohm Video and Data Links

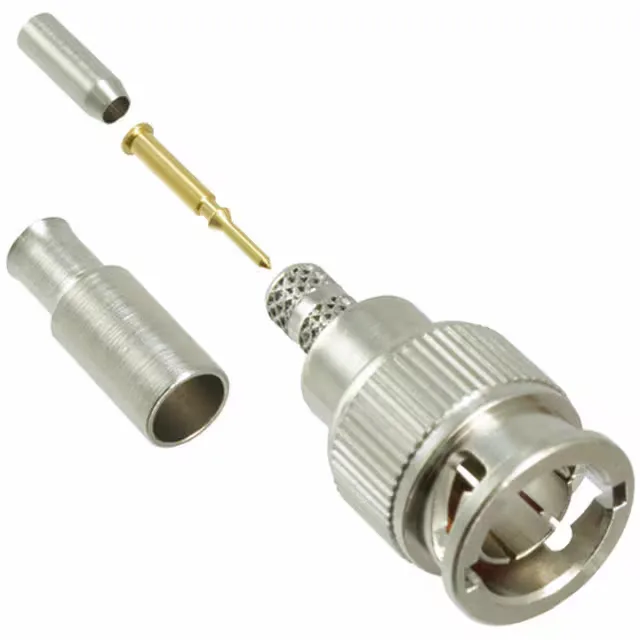

The 031-70335: It covers RG-174, 188, 188A, 316, and LMR-100 cable types, which are the common small-diameter coax cables used in tight-bend installations. Rated to 4 GHz with 0.1 dB insertion loss, this plug handles the full bandwidth of 3G-SDI and most 4K video links without signal degradation. The PTFE dielectric keeps phase stable across the -40°C to 155°C operating range — relevant for outdoor cameras, broadcast trucks, and industrial machine vision where temperature swings are routine. The kit includes five pieces: the connector body, one contact, one ferrule, one sleeve, and one spacer. That means the crimp tool and die set are all you need to bring to the bench — no sourcing separate parts for a single cable end.
Crimp Termination and Cable Fit
The listed cable group — RG-174, 188, 188A, 316, LMR-100, M17/119-RG174 — all share a similar outer jacket diameter and center conductor size, so the same crimp die works across the set. Nickel body finish on phosphor bronze gives the shell good RF shielding and environmental protection — standard for indoor/outdoor broadcast gear.
