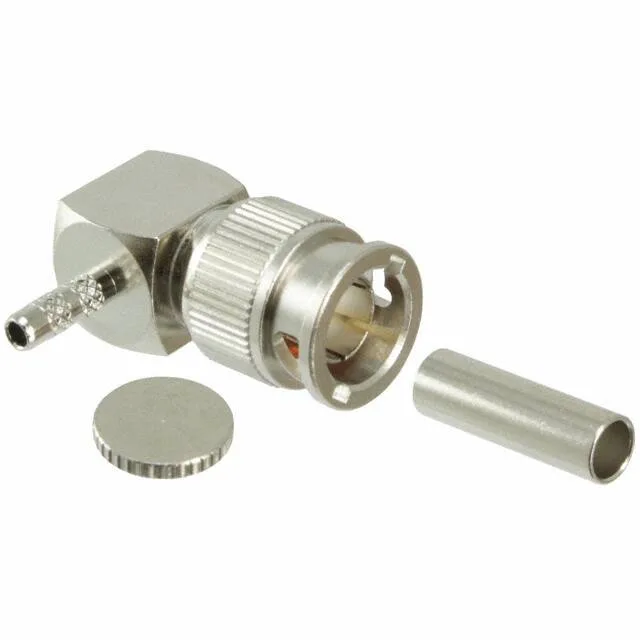

Amphenol mini BNC plug, 75 Ohm, 1 GHz, RG-179/187 cable group, bayonet lock, crimp shield, solder contact, 500 mating cycles, bulk kit includes connector + end cap + ferrule.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line), Right Angle |
| Connector type | Plug, Male Pin |
| Fastening type | Bayonet Lock |
| Frequency - max | 1 GHz |
| Cable group | RG-179, 179A, 179B, 187, 187A, Belden 9221, M17/94-RG179 |
| Body material | Phosphor Bronze |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Brass |
| Package | Bulk |
| Includes | 3 pcs - 1 Connector, 1 End Cap, 1 Ferrule |
| Impedance | 75Ohm |
| Parameter | Value |
|---|---|
| Body finish | Nickel |
| Mating cycles | 500 |
| Insertion loss | 0.1dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Solder |
| Center contact plating | Gold |
The 031-70339: This plug is built for RG-179, 179A, 179B, 187, 187A, and Belden 9221 — the common 75 Ohm miniature coax types with a solid or stranded centre conductor around 0.3 mm diameter. Shield termination is crimp; the centre contact is soldered.
Phosphor bronze body with nickel finish, brass centre contact plated gold.
75 Ohm. That impedance is set by the PTFE dielectric and the centre-contact geometry, and it matches RG-179 class cables. A 50 Ohm BNC on this cable would create a mismatch; the 031-70339 is the correct 75 Ohm plug for that cable group.
RG-179, 179A, 179B, 187, 187A, and Belden 9221. The kit includes the crimp ferrule sized for these cables. Shield is crimped, centre conductor soldered.
The manufacturer's datasheet covers the 031-70 series mini BNC connectors, including this plug. It details the cable stripping dimensions, crimp tooling, and electrical performance up to 1 GHz. Request a copy with your RFQ.
