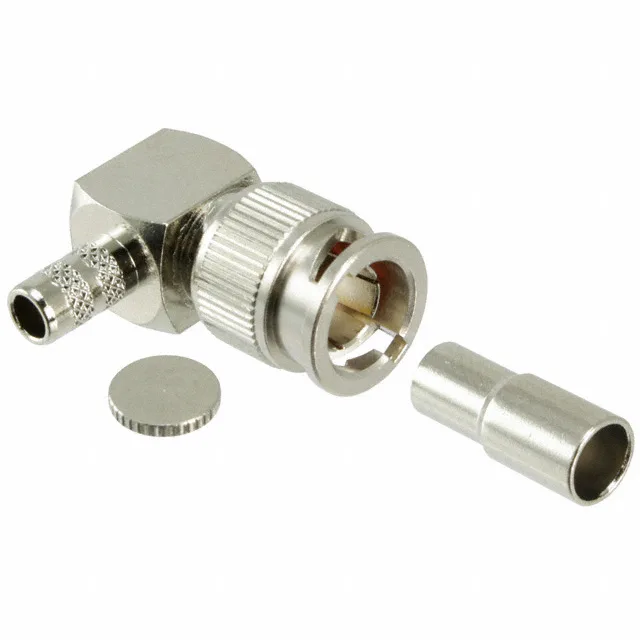

031-70340 — Amphenol product photo
Amphenol

Amphenol 031-70340 Mini BNC Plug, 75 Ohm, 1 GHz

MPN031-70340
Active

Amphenol mini BNC plug, 75 Ohm, 1 GHz, plug male pin, bayonet lock, solder contact, crimp shield, free-hanging right-angle, gold center contact, 500 mating cycles, includes connector + end cap + ferrule.

$11.1700Ref. price · indicative, final on quote
031-70340 datasheet
StockIn Stock (28)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-70340 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line), Right Angle
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Frequency - max1 GHz
Cable groupRG-122, 180, 180A, 180B, 195, Belden 1855, 1865A
Body materialPhosphor Bronze
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 End Cap, 1 Ferrule
Impedance75Ohm
Body finishNickel
Mating cycles500
Insertion loss0.1dB
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

75 Ohm Mini BNC Plug for RG-Type Cables

The Amphenol 031-70340 is a mini BNC plug with a 75 Ohm impedance, designed for video, broadband, and data applications up to 1 GHz. It is the male pin (plug) half of the mini-BNC interface, mating with a standard mini-BNC jack. The 75 Ohm impedance matches video distribution and broadcast equipment where 75 Ohm coax is standard. The 1 GHz frequency ceiling covers analog video and most digital video signals up to HD-SDI.

This plug accepts RG-122, RG-180A, RG-180B, RG-195, Belden 1855, and Belden 1865A cables. The phosphor bronze body with nickel finish provides corrosion resistance in indoor equipment racks.

RF Performance and Construction

Insertion loss is specified at 0.1 dB, and the PTFE dielectric maintains consistent impedance through the signal path. The bayonet lock gives a positive quarter-turn mate with audible feedback — no threads to cross, no torque specification to meet.

Frequently asked questions

Where can I buy 031-70340?

Submit a request for current pricing and availability — confirmed at quote time.

What cables are compatible with 031-70340?

It accepts RG-122, RG-180, RG-180A, RG-180B, RG-195, Belden 1855, and Belden 1865A. The center contact is soldered; the shield is crimped with the included ferrule.
