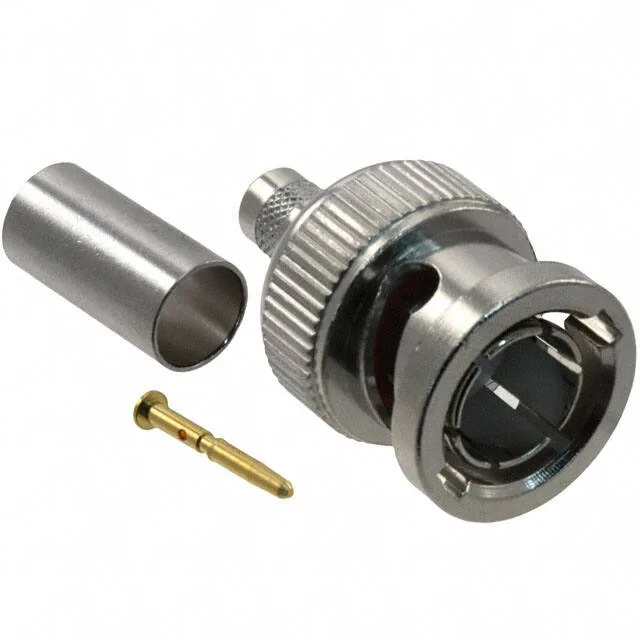

031-70466 — Amphenol product photo

Amphenol RF 031-70466 BNC Plug, 75 Ohm, Times Fiber 210

MPN031-70466
Active

Amphenol RF BNC plug, male pin, 75 Ohm, crimp termination, Times Fiber 210 cable, 500 V, 4 GHz, 500 mating cycles, bayonet lock, Bulk.

$5.4800Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

031-70466 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Cable groupTimes Fiber 210
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Impedance75Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

The 031-70466: It's a crimp-terminated, bayonet-lock connector built for the 75 Ohm video and data coax world — not the 50 Ohm RF bench.

This plug is built for Times Fiber 210 cable — the cable group is specified in the part definition. The shield termination is crimped over the cable braid, and the centre contact crimps onto the conductor. The nickel-plated brass body and gold-plated centre contact handle the 500 mating cycles without the plating wearing through on the signal path. The PTFE dielectric holds the centre conductor concentric, which is what keeps the 75 Ohm impedance consistent through the crimp zone.

Frequently asked questions

Is 031-70466 compatible with Times Fiber 210 cable?

Yes, the 031-70466 is specified for Times Fiber 210 cable.
