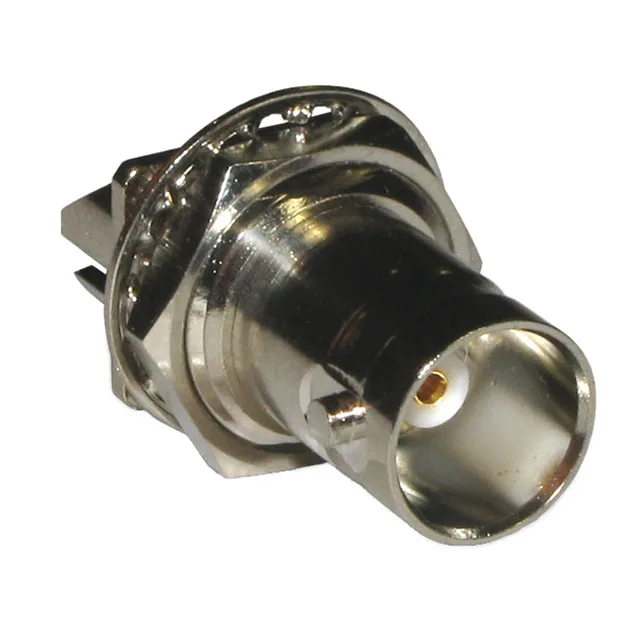

031-70526-23 — Amphenol product photo
Amphenol

Amphenol RF 031-70526-23 BNC Jack, 75 Ohm, 12 GHz, Bulkhead

MPN031-70526-23
Active

Amphenol RF BNC jack, 75 Ohm, 12 GHz, female socket, bayonet lock, solder termination, bulkhead front-side nut, nickel-plated brass body, gold-plated beryllium copper center contact, 500 mating cycles, -65°C to 165°C.

$9.0062Ref. price · indicative, final on quote
031-70526-23 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-70526-23 Technical Specifications
ParameterValue
Mounting typeBoard Edge, End Launch; Panel Mount
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Frequency - max12 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Includes3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Impedance75Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

The 031-70526-23: This particular variant is built for 75 Ohm systems — the impedance that distinguishes it from the more common 50 Ohm BNC — making it the correct choice for video, CCTV, and broadcast signal paths where 75 Ohm is the standard. Rated to 12 GHz, this jack handles high-frequency video and data signals well beyond the typical baseband video range. The nickel-plated brass body provides the standard BNC shielding and environmental durability.

Mounting and Termination Detail

This jack supports two mounting styles: board-edge end launch, where the connector sits at the edge of the PCB and the signal pin is soldered directly to a trace, and panel mount, where the bulkhead nut clamps the connector to a chassis or enclosure panel. The shield termination is solder-type, meaning the outer braid of the coaxial cable is soldered to the body for a continuous ground path. The contact termination is also solder, requiring the center conductor to be soldered to the beryllium copper pin.

Frequently asked questions

Where can I buy 031-70526-23?

The 031-70526-23 is available to order through independent distribution. It is sourced and quoted against an RFQ; current pricing and lead time are confirmed at the time of your quote request.

What is the difference between 031-70526-23 and 031-70526-22?

Both share the same BNC form factor and bayonet lock, but the impedance difference means they are not electrically interchangeable — the 75 Ohm version is for video/broadcast, the 50 Ohm for RF/data.
