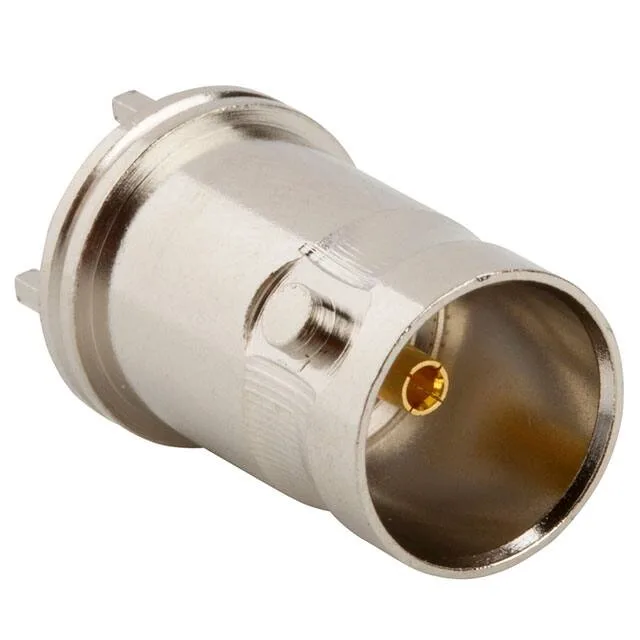

Amphenol 031-70530 BNC Jack, 75 Ohm, Through Hole, 12 GHz

MPN031-70530
Active

Amphenol RF BNC jack, 75 Ohm, through-hole, gold-plated phosphor bronze centre contact, nickel-plated brass body, PTFE dielectric, 500 mating cycles, 12 GHz max frequency.

$13.8200Ref. price · indicative, final on quote
031-70530 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-70530 Technical Specifications
ParameterValue
Mounting typeThrough Hole
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Frequency - max12 GHz
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze
PackageBulk
Impedance75Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

12 GHz Bandwidth and 500-Cycle Mating Life

The 031-70530: Rated to 12 GHz maximum frequency, this jack supports the full bandwidth of 3G-SDI and 12G-SDI video signals with margin. The 75-Ohm impedance is held through the PTFE dielectric and the precision centre-contact geometry — a 50-Ohm BNC would introduce a reflection at the transition. The 500-cycle mating life is typical for a bayonet-lock BNC with gold-plated centre contact; the bayonet coupling provides quick connect/disconnect without the thread wear of an SMA, and the gold plating keeps the contact resistance stable across those cycles.
