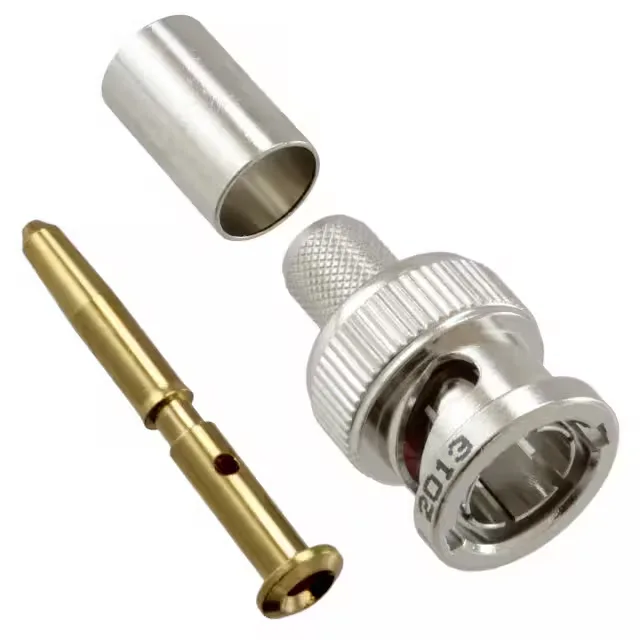

Amphenol RF BNC series, 031-70546-12G, plug male pin, 75 Ohm, 12 GHz, crimp termination, bayonet lock, 500 mating cycles, nickel body, gold centre contact, for Belden 4505R cable.
| Parameter | Value |
|---|---|
| Mounting type | Free Hanging (In-Line) |
| Connector type | Plug, Male Pin |
| Fastening type | Bayonet Lock |
| Frequency - max | 12 GHz |
| Cable group | Belden 4505R |
| Operating temperature | -30°C~85°C |
| Body material | Phosphor Bronze |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Brass |
| Package | Bulk |
| Impedance | 75Ohm |
| Body finish | Nickel |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp |
| Center contact plating | Gold |
The 031-70546-12G: It carries a 12 GHz frequency rating, which means it handles the full L-band through X-band spectrum used in video distribution, broadband RF, and test equipment.
This connector is engineered for Belden 4505R — the cable group is specified in the part number, not a generic fit. The nickel body finish and phosphor bronze body material resist corrosion in humid or mildly industrial environments.
The 031-70546-12G is designed for Belden 4505R cable. The cable group is specified in the part — not a generic fit. Using a different cable changes the impedance match and the crimp die requirement.
The gold-plated brass centre contact and nickel body finish support repeated connect-disconnect without signal degradation or corrosion.
Yes, the 031-70546-12G uses a bayonet lock fastening type. The quarter-turn coupling provides a vibration-resistant mate without requiring a torque specification.
