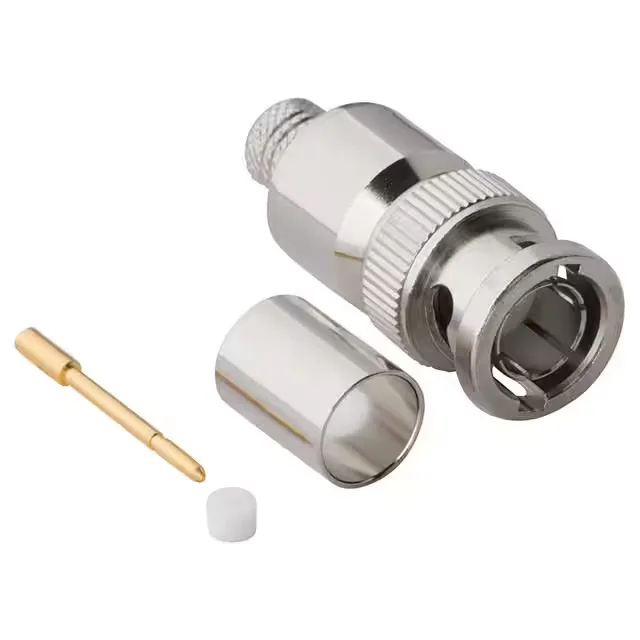

031-70552-12G — Amphenol product photo
Amphenol

Amphenol RF 031-70552-12G BNC Plug, 75 Ohm, 12 GHz

MPN031-70552-12G
Active

Amphenol RF BNC plug, 75 Ohm, crimp termination for Canare L-5.5CUHD, 12 GHz max, gold center contact, 500 mating cycles, bulk package.

$8.9400Ref. price · indicative, final on quote
031-70552-12G datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-70552-12G Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Frequency - max12 GHz
Cable groupCanare L-5.5CUHD
Operating temperature-30°C~85°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance75Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

The 031-70552-12G: This is not a generic 50 Ohm RF BNC — the 75 Ohm impedance targets broadcast video, HD-SDI, and precision instrumentation applications where signal return loss matters. The 12 GHz maximum frequency is unusually high for a 75 Ohm BNC, putting this connector in the premium tier for high-bandwidth serial digital video links.

Cable Compatibility — Canare L-5.5CUHD and Beyond

The factory-specified cable is Canare L-5.5CUHD, a precision 75 Ohm broadcast coax with a 5.5 mm outer diameter. This connector is not listed as compatible with RG59 or Belden 1505F — those are different cable constructions with different dielectric diameters and impedance characteristics. Using this plug on an unspecified cable will shift the impedance and degrade the return loss at higher frequencies. For a BOM match, confirm the cable type before committing the line item.

Frequently asked questions

What cable is the 031-70552-12G compatible with?

The factory-specified cable is Canare L-5.5CUHD. It is not listed as compatible with RG59 or Belden 1505F — confirm your cable type before ordering.
