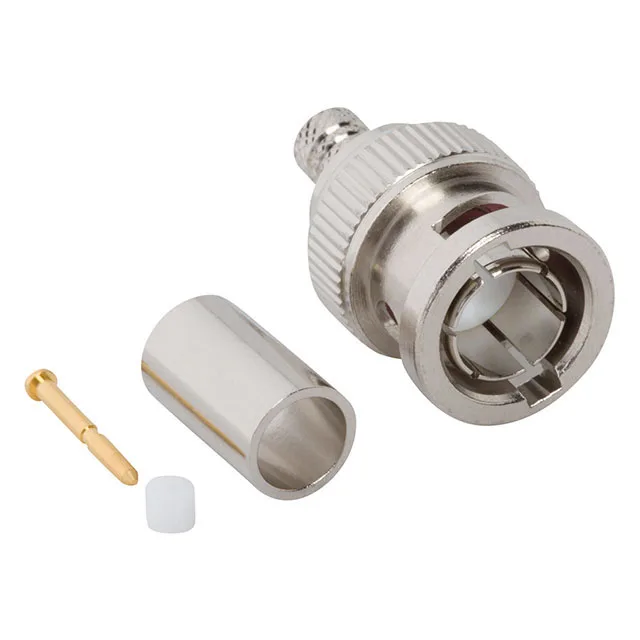

031-70554-12G — Amphenol product photo
Amphenol

031-70554-12G BNC Plug, 75 Ohm, 12 GHz, Canare L-3.3CUHD

MPN031-70554-12G
Active

Amphenol 031-70554-12G BNC plug, 75 Ohm, 12 GHz, for Canare L-3.3CUHD cable, gold center contact, nickel body, crimp termination, bulk pack.

$11.3100Ref. price · indicative, final on quote
031-70554-12G datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-70554-12G Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Frequency - max12 GHz
Cable groupCanare L-3.3CUHD
Operating temperature-30°C~85°C
Body materialPhosphor Bronze
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance75Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

The 031-70554-12G: It's a male pin, free-hanging (in-line) connector with a bayonet lock, rated to 12 GHz. The 75 Ohm impedance and 12 GHz bandwidth make it a natural fit for high-definition video, broadcast, and CCTV installations where signal integrity at higher frequencies matters.

Cable Match and Crimp Termination

This plug is factory-specified for Canare L-3.3CUHD cable — a 75 Ohm coax with a 3.3 mm diameter, commonly used in broadcast runs. The center contact and shield ferrule both crimp, so you'll need the correct crimp die set for that cable's outer diameter.

Durability and Finish

The bayonet lock gives a positive mechanical mate without tools.

Frequently asked questions

Where can I buy 031-70554-12G available via RFQ confirmation?

Stock levels and lead time are confirmed at quote time — submit an RFQ for current availability.

What is the impedance of 031-70554-12G?

75 Ohm nominal, matched to standard video and broadcast coax systems.
