Amphenol RF 031-70568-12G BNC Jack, 75 Ohm, 12 GHz, Bulkhead

MPN031-70568-12G
Active

Amphenol RF 75 Ohm BNC jack, bulkhead front-side nut mount, crimp termination, 12 GHz max, 500 mating cycles, gold-plated phosphor bronze centre contact, nickel-plated brass body, PTFE dielectric.

$12.9300Ref. price · indicative, final on quote
031-70568-12G datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-70568-12G Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Frequency - max12 GHz
Mounting featureBulkhead - Front Side Nut
Cable groupBelden 1794A, 4794R
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze
PackageBulk
Includes6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Insulator, 1 Lockwasher, 1 Nut
Impedance75Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

75 Ohm BNC Bulkhead Jack for Broadcast Video

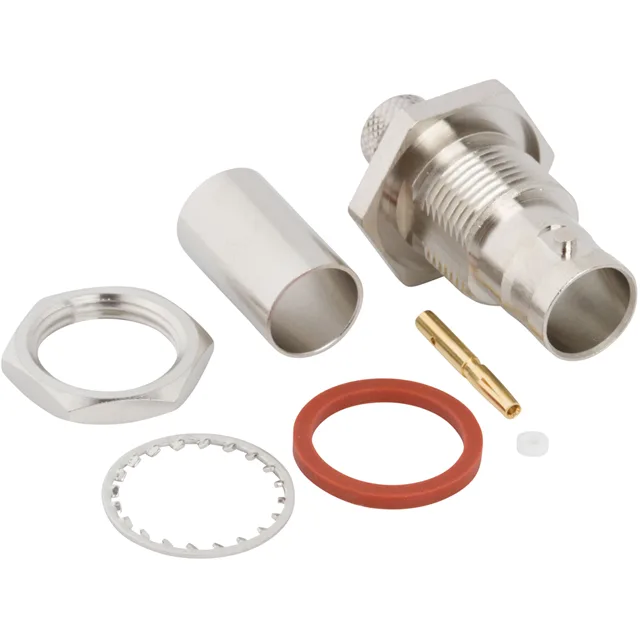

The 031-70568-12G: It's built for the 75 Ohm video/broadcast world — not the 50 Ohm RF bench. Rated to 12 GHz maximum frequency, it covers the full HD-SDI bandwidth and then some. This is a crimp-termination connector: the centre contact crimps, and the shield terminates via a crimp ferrule. The kit includes six pieces: one connector body, one centre contact, one ferrule, one insulator, one lockwasher, and one nut — everything needed for a single bulkhead install except the cable and crimp tool.

500 Mating Cycles, Gold Centre Contact

The nickel-plated brass body provides RF shielding and corrosion resistance. The bulkhead front-side nut secures it to the panel; the lockwasher prevents loosening under vibration.

Frequently asked questions

Where can I buy 031-70568-12G and how is it quoted?

Submit an RFQ for your volume and delivery window.

Is 031-70568-12G a 75 ohm or 50 ohm BNC connector?

It is not the 50 Ohm version — the impedance is a fixed selection parameter. Use it with 75 Ohm cable such as Belden 1794A or 4794R.

What cable works with 031-70568-12G?

The connector is specified for Belden 1794A and 4794R cable groups. The crimp ferrule and centre contact are sized for these cables; using a different cable requires verifying the dielectric diameter and centre conductor size against the crimp tooling.

What accessories are included with 031-70568-12G?

The kit includes six pieces: one connector body, one centre contact, one ferrule, one insulator, one lockwasher, and one nut. That covers the full bulkhead install — you supply the cable and crimp tool.
