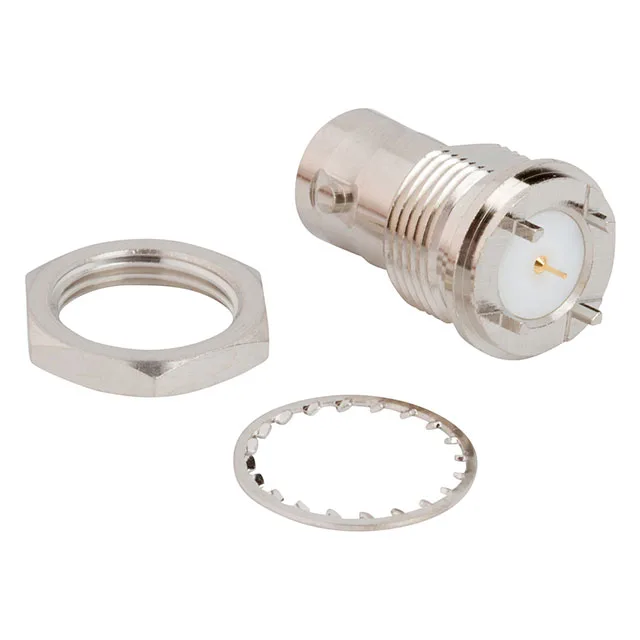

031-70577-12G — Amphenol product photo
Amphenol

Amphenol 031-70577-12G BNC Jack, 75 Ohm, 12 GHz, Bulkhead

MPN031-70577-12G
Active

Amphenol BNC series 031-70577-12G, jack female socket, 75 Ohm impedance, 12 GHz max frequency, panel mount through hole, bayonet lock, gold center contact, 500 mating cycles.

$12.0900Ref. price · indicative, final on quote
031-70577-12G datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-70577-12G Technical Specifications
ParameterValue
SeriesBNC
Mounting typePanel Mount, Through Hole
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Frequency - max12 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze
PackageBag
Impedance75Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

75 Ohm BNC for Video and Data — What Sets This One Apart

The 031-70577-12G: It carries a 12 GHz frequency ceiling, which is unusually high for a 75 Ohm BNC — most 75 Ohm parts top out around 1-2 GHz, so this one is specced for higher-bandwidth signals like 4K/8K video or serial digital interfaces.

Construction and Termination — What You Get in the Bag

Termination is solder for both the center pin and the shield — no crimp tool needed, but you'll want a clean soldering iron and a steady hand on the center contact. The package is a bag, so it ships loose, not on a tape reel.

Frequently asked questions

Is 031-70577-12G 50 or 75 ohm?

The impedance is specified as 75 Ohm, which means it is designed for video, broadcast, and data applications — not for standard RF test equipment or radio systems.

Does 031-70577-12G have a bayonet lock?

Yes, the fastening type is bayonet lock — the standard BNC quarter-turn coupling. It mates and unmates quickly without threads, and the 500-cycle rating means the locking groove is designed for repeated field use.
