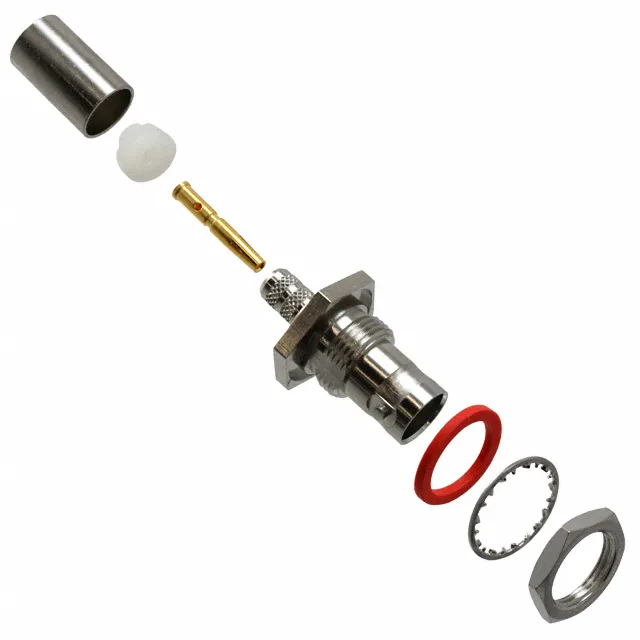

Amphenol RF BNC jack, 75 Ohm, panel mount, bulkhead, crimp termination, 4 GHz, 500 mating cycles, nickel body, gold center contact, bulk.
| Parameter | Value |
|---|---|
| Mounting | Panel Mount |
| Connector type | Jack, Female Socket |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 4 GHz |
| Mounting feature | Bulkhead - Front Side Nut |
| Cable group | RG-59, 59B, 62, 140, 210, Belden 8241, 8263, 8279, 9209 |
| Operating temperature | -65°C ~ 165°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polyoxymethylene (POM) Acetal |
| Center contact material | Phosphor Bronze |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 75 Ohms |
| Body finish | Nickel |
| Mating cycles | 500 |
| Insertion loss | 0.2dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp |
| Center contact plating | Gold |
The 031-71011-RFX: This is a panel-mount bulkhead jack with a bayonet lock, accepting a female socket contact.
This jack is designed for a specific cable group: RG-59, RG-62, RG-140, RG-210, and Belden 8241, 8263, 8279, 9209. These are all 75 Ohm cables, so the impedance match holds through the crimp junction.
The bayonet lock provides quick mate-and-release, with positive retention against vibration up to the 500-cycle mating life.
This part is active and sourced to order.
