The 031-71013-1000: For 75 Ohm paths — CCTV, SDI video, broadband cable — this is the correct interface. The 500 mating cycles mean the gold-plated centre contact and nickel-plated brass body survive repeated connect-disconnect in field-service or test-panel use without degrading the signal path. The PTFE dielectric maintains stable impedance across that span, so the 75 Ohm line stays clean from cold start to hot soak.
Amphenol RF 031-71013-1000 BNC Plug, 75 Ohm, 4 GHz
MPN031-71013-1000
Active

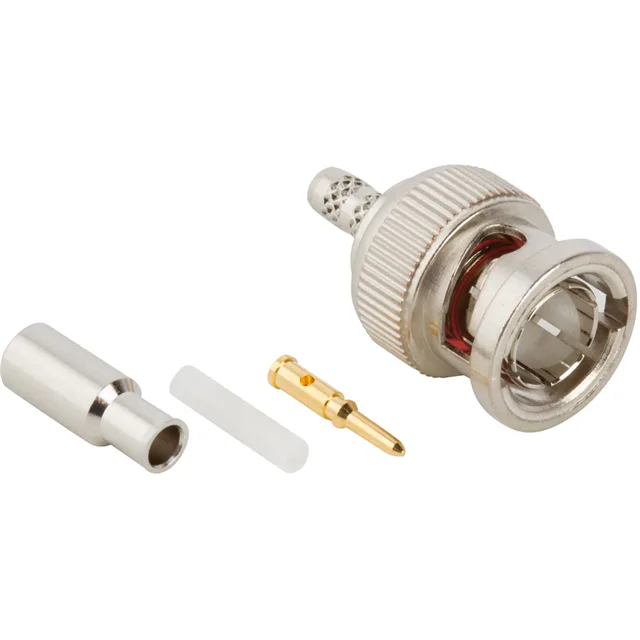

Amphenol RF BNC plug, male pin, 75 Ohm, crimp termination, 4 GHz, 500 mating cycles, nickel body, gold center contact, bulk pack includes connector, contact, ferrule.
$5.4800Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pin |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 4 GHz |
| Cable group | AT&T 19224-L2 |
| Operating temperature | -65°C~165°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Brass |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 75Ohm |
| Body finish | Nickel |
| Mating cycles | 500 |
| Insertion loss | 0.2dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp |
| Center contact plating | Gold |
Product details
Frequently asked questions
Is 031-71013-1000 compatible with AT&T 19224-L2 cable?
Yes, the plug is specified for AT&T 19224-L2 cable group. The kit includes the connector, contact, and ferrule for that cable type.
What is the insertion loss of 031-71013-1000?
0.2 dB typical, which keeps the signal clean through the connector at frequencies up to 4 GHz.
