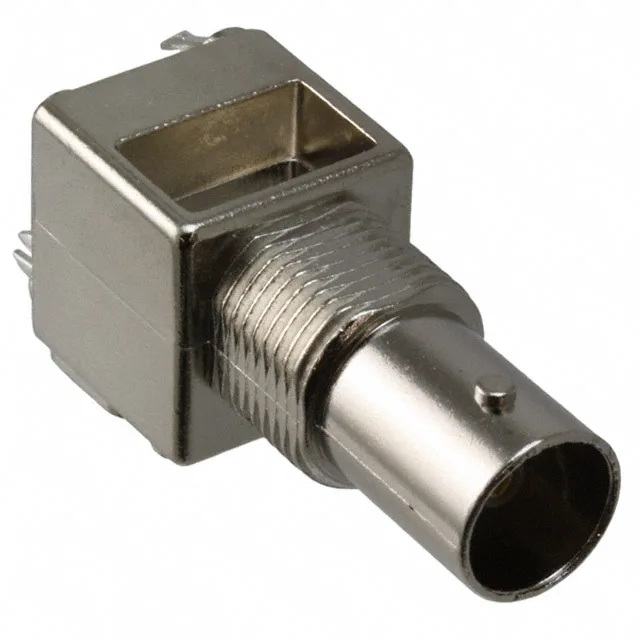

Amphenol RF 031-71045-1010 BNC jack, 75 Ohm, 1 port, panel mount bulkhead, through-hole solder termination, board lock, 500 V, 500 mating cycles, 1 GHz max frequency, 0.2 dB insertion loss.
| Parameter | Value |
|---|---|
| Mounting | Panel Mount, Through Hole |
| Connector type | Jack, Female Socket |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 1 GHz |
| Mounting feature | Bulkhead - Front Side Nut |
| Operating temperature | -55°C~85°C |
| Body material | Zinc Die Cast |
| Housing color | Silver |
| Dielectric material | Polypropylene (PP) |
| Center contact material | Phosphor Bronze |
| Package | Tray |
| Parameter | Value |
|---|---|
| Features | Board Lock |
| Impedance | 75Ohm |
| Body finish | Nickel |
| Mating cycles | 500 |
| Insertion loss | 0.2dB |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Gold |
The 031-71045-1010: The 500 V voltage rating and 500 mating cycles are in line with a fixed-installation BNC receptacle — not a high-cycle patch panel port, but durable for equipment rear-panel use. The zinc die-cast body with nickel finish and silver housing colour is the standard BNC appearance. Dielectric is polypropylene (PP).
Yes, the 031-71045-1010 includes a board lock feature for PCB retention during soldering and against cable strain.
