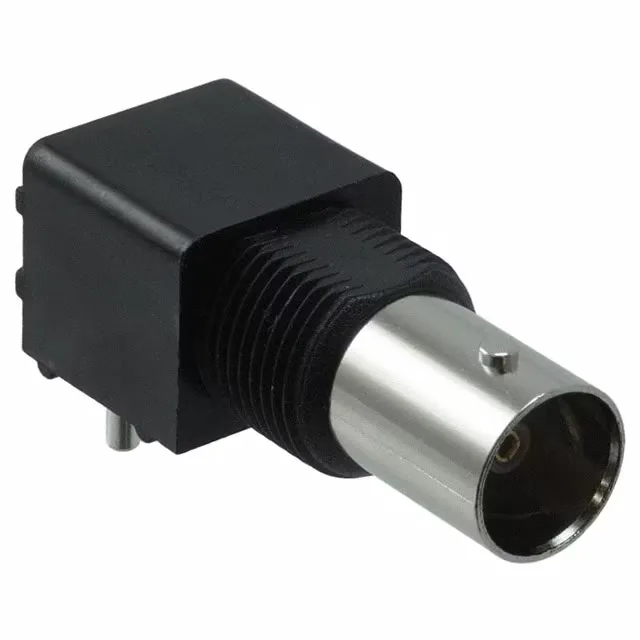

031-71053 — Amphenol product photo
Amphenol

Amphenol RF 031-71053 BNC Jack, 75 Ohm, 1 GHz, Panel Mount

MPN031-71053
Active

Amphenol RF BNC jack, 75 Ohm, 1 port, right-angle PCB mount, bulkhead front-side nut, solder termination, gold centre contact, 500 mating cycles.

$8.8380Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-71053 Technical Specifications
ParameterValue
Mounting typePanel Mount, Through Hole, Right Angle
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max1 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-55°C~85°C
Body materialZinc Die Cast
Housing colorBlack, Silver
Dielectric materialPolypropylene (PP)
Center contact materialPhosphor Bronze
PackageTray
FeaturesBoard Guide, Isolated
Impedance75Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

The 031-71053: Rated to 1 GHz with a 0.2 dB insertion loss across the band, it carries composite video, HD-SDI, and baseband signals without the impedance mismatch that 50 Ohm parts introduce on a 75 Ohm line. The right-angle PCB tail and bulkhead front-side nut mount it flush to a panel, with the bayonet lock securing the mating plug.

500 Mating Cycles with Gold-Plated Centre Contact

The isolated construction (the centre contact is electrically separate from the shell) and the board guide on the mounting feature help align the connector during panel installation and prevent ground loops in sensitive video paths.
