The 031-71053-1010: The right-angle PCB mount with bulkhead front-side nut lets you land the connector flush to a panel while routing the signal trace perpendicular to the board edge. Gold-plated phosphor bronze center contact and 500 mating cycles mean this jack holds up in field-service gear that gets reconnected weekly.

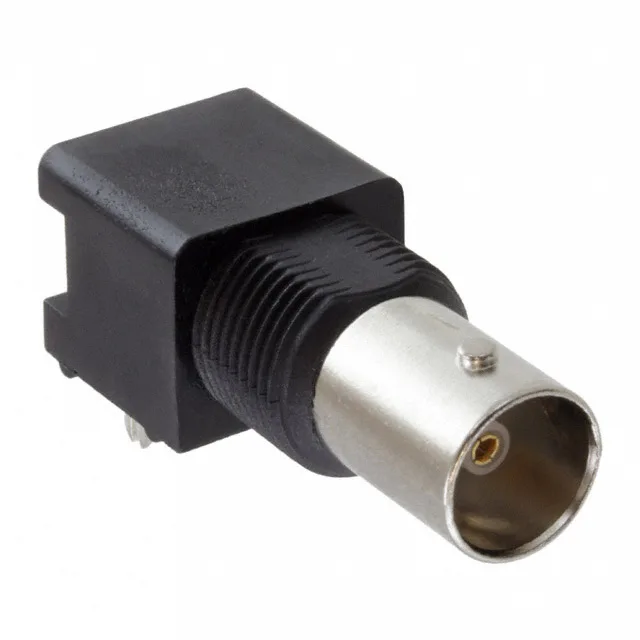

Amphenol RF 031-71053-1010 BNC Jack, 75 Ohm, 1 GHz
MPN031-71053-1010
Active
Amphenol RF BNC jack, 75 Ohm, 1 port, right-angle PCB mount, panel mount with bulkhead front nut, board lock, solder termination, nickel body, gold center contact.
$10.9900Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | Jack, Female Socket |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 1 GHz |
| Mounting feature | Bulkhead - Front Side Nut |
| Operating temperature | -55°C~85°C |
| Body material | Zinc Die Cast |
| Housing color | Black, Silver |
| Dielectric material | Polypropylene (PP) |
| Center contact material | Phosphor Bronze |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Lock, Isolated |
| Impedance | 75Ohm |
| Body finish | Nickel |
| Mating cycles | 500 |
| Insertion loss | 0.2dB |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Gold |
Product details
Frequently asked questions
Does 031-71053-1010 have board lock and isolated features?
Yes. The board lock anchors the connector to the PCB, and the isolated body means the shell is not connected to circuit ground.
Is 031-71053-1010 compatible with RG59 or RG6 cable?
The evidence does not list a specific cable compatibility. This is a PCB-mount jack with solder termination — the cable is not terminated directly to this connector; it mates with a BNC plug on the cable end. Confirm cable impedance matches the 75 Ohm system.
