Amphenol BNC plug, male pin, 75 Ohm, 4 GHz, crimp/solder termination, RG-6 compatible, 500 V, 500 mating cycles, nickel body, gold center contact, bulk package.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pin |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 4 GHz |
| Cable group | RG-6, 6A, 54, 143, 212, Belden 1152A, 89248, 9290 |
| Operating temperature | -65°C~165°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Brass |
| Package | Bulk |
| Parameter | Value |
|---|---|

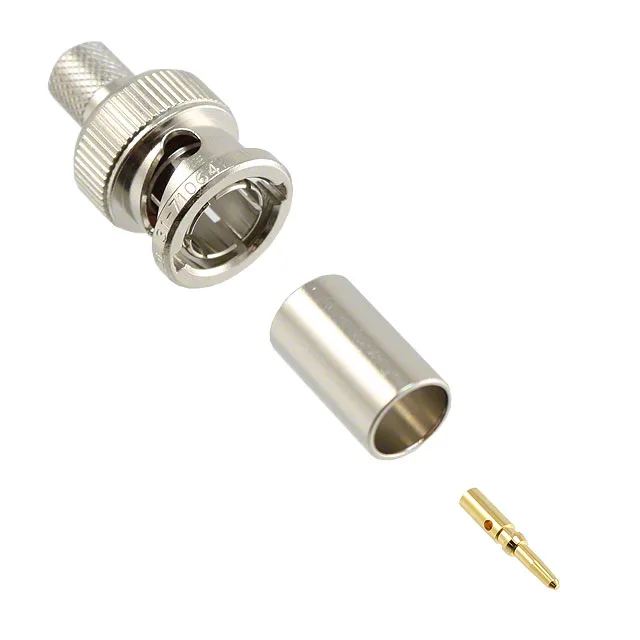

| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 75Ohm |
| Body finish | Nickel |
| Mating cycles | 500 |
| Insertion loss | 0.2dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp or Solder |
| Center contact plating | Gold |
The 031-71064: The bayonet lock provides a quick quarter-turn mate, and the crimp shield termination keeps the braid connection consistent for RF performance up to 4 GHz. Insertion loss is rated at 0.2 dB.
The center contact can be crimped or soldered; the shield is crimped. The nickel-plated brass body and gold-plated brass center contact give corrosion resistance and good conductivity for repeated mating cycles (rated 500).
The 031-71064 is NRND (Not Recommended for New Design), not fully obsolete.
The 031-71064 is compatible with RG-6, RG-6A, RG-54, RG-143, RG-212, and Belden 1152A, 89248, and 9290 cables.
