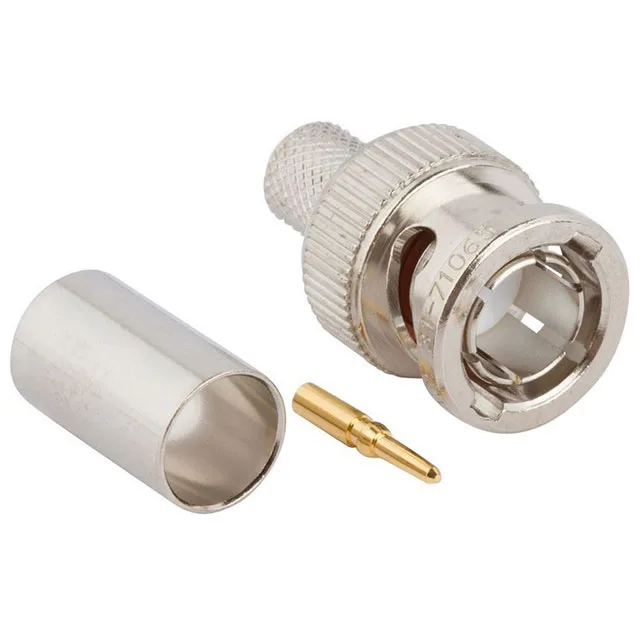

031-71065 — Amphenol product photo
Amphenol

Amphenol RF 031-71065 BNC Plug, 75 Ohm, RG-6DS Kit

MPN031-71065
Active

Amphenol RF BNC plug, male pin, 75 Ohm, for RG-6DS, 3-piece kit, crimp/solder termination, bayonet lock, 2 GHz, 500 mating cycles.

$5.4800Ref. price · indicative, final on quote
031-71065 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-71065 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max2 GHz
Cable groupRG-6DS
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance75Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp or Solder
Center contact platingGold

Product details

The 031-71065: This is the 75 Ohm variant — not the 50 Ohm BNC common in test equipment — so the impedance match is correct for video, broadcast, and CATV distribution where 75 Ohm is the standard line impedance.

This plug is gated to RG-6DS cable — the ferrule ID and centre contact bore match that specific cable's dielectric OD and centre conductor. The contact accepts either crimp or solder termination; the shield termination is crimp, which is the faster method for production harnesses and gives consistent pull-off strength.

Frequently asked questions

What cable does 031-71065 work with?

The 031-71065 is designed for RG-6DS cable. The ferrule and centre contact are sized to that specific cable's dimensions. Using a different cable gauge may not achieve proper crimp retention or impedance match.
