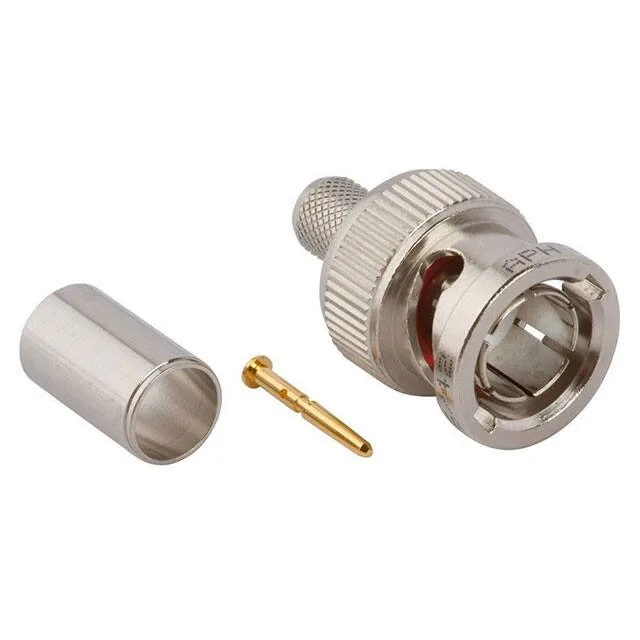

031-80104 — Amphenol product photo
Amphenol

Amphenol RF 031-80104 BNC Plug, 75 Ohm, 4 GHz, NRND

MPN031-80104
NRND

Amphenol RF BNC plug, male pin, 75 Ohm, 4 GHz, 500 V, crimp termination, free-hanging, includes connector, contact, ferrule, nickel body, gold center contact, Bulk.

$8.7300Ref. price · indicative, final on quote
031-80104 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-80104 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Cable groupAT&T 734, 734A, Belden 1505A
Operating temperature-65°C~165°C
Body materialPhosphor Bronze
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance75Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

This means Amphenol RF will continue to support existing production and replacement demand for a period, but the part is no longer being actively marketed for new projects. For a new BOM line, an alternative should be identified.

Cable Fit and Termination — What You Get in the Kit

The cable group is explicitly listed as AT&T 734, 734A, and Belden 1505A — these are 75 Ohm coax cables with a specific dielectric diameter and braid construction. The center contact crimps onto the center conductor, the ferrule crimps over the braid and jacket. The shield termination is crimp-style, not clamp or solder, so the correct crimp tool and die set for Belden 1505A-class cable is required.

RF Performance and Environmental Range

Rated to 4 GHz maximum frequency with 0.2 dB insertion loss, this connector handles the full L-band and most of the S-band for video and telemetry.

Frequently asked questions

Is 031-80104 compatible with Belden 1505A cable?

Yes. The cable group listed for this connector includes Belden 1505A, along with AT&T 734 and 734A. The kit is designed to terminate that specific cable type.

Does 031-80104 include the contact and ferrule?

Yes, the kit includes three pieces: one connector body, one gold-plated center contact, and one crimp ferrule. Everything needed to terminate one cable end is in the package.
