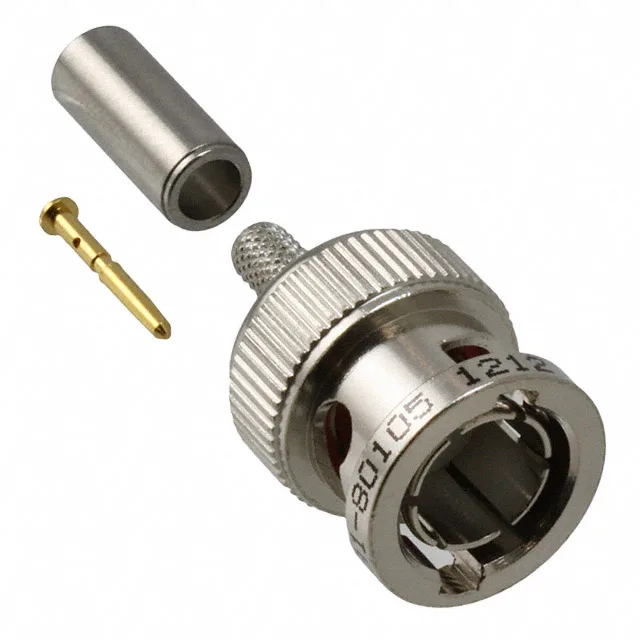

031-80105 — Amphenol product photo
Amphenol

031-80105 BNC Plug, 75 Ohm, 4 GHz, Crimp Termination, Active

MPN031-80105
Active

Amphenol 031-80105 BNC plug, 75 Ohm, 4 GHz, crimp termination, bayonet lock, includes connector + contact + ferrule, Bulk.

$5.4800Ref. price · indicative, final on quote
031-80105 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-80105 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Cable groupAT&T 735, 735A, Belden 735A1
Operating temperature-65°C~165°C
Body materialPhosphor Bronze
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance75Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

75-Ohm BNC Plug — 4 GHz, Crimp, Bayonet Lock

The Amphenol 031-80105 is a 75-Ohm BNC plug designed for precision video and data transmission up to 4 GHz. The 75-Ohm impedance matches standard broadcast and CCTV cable infrastructure, not the 50-Ohm RF world — a common swap mistake that kills return loss.

Cable Group and Termination Fit

This plug is listed for cable groups AT&T 735, 735A, and Belden 735A1. If you are terminating RG6 or another 75-Ohm cable, check the outer diameter and dielectric compatibility — the listed groups are specific, and a mismatch in cable diameter or dielectric material will affect the crimp quality and impedance continuity.

Signal Performance — Insertion Loss and Frequency

Insertion loss is specified at 0.2 dB, which is tight for a crimp BNC at 4 GHz.

Frequently asked questions

What cable group does 031-80105 fit?

It fits AT&T 735, 735A, and Belden 735A1 cable groups. Verify your cable's outer diameter and dielectric before ordering.

How many pieces come with 031-80105?

The package includes three pieces: one connector, one contact, and one ferrule.

Can 031-80105 be used with RG6 cable?

The listed cable groups are AT&T 735, 735A, and Belden 735A1. RG6 is not explicitly listed; check the cable outer diameter and dielectric compatibility before use.
