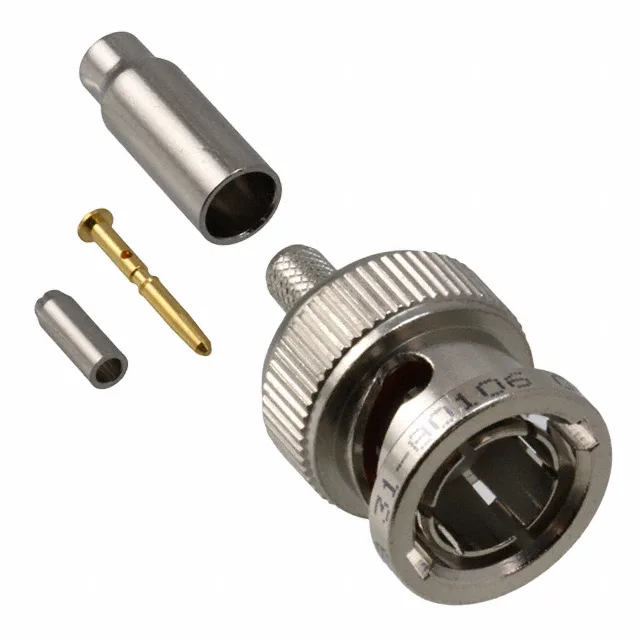

031-80106 — Amphenol product photo
Amphenol

Amphenol RF 031-80106 BNC Plug Kit, 75 Ohm, 4 GHz, RG-174

MPN031-80106
Active

Amphenol RF BNC plug kit, 75 Ohm, 4 GHz, crimp termination, RG-174/188/316/LMR-100, nickel body, gold center contact, 500 mating cycles.

$8.4100Ref. price · indicative, final on quote
031-80106 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

031-80106 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Cable groupRG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Operating temperature-65°C~165°C
Body materialPhosphor Bronze
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Insulator, 1 Sleeve
Impedance75Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

75 Ohm BNC Plug Kit for RG-174 and Similar Cables

The 031-80106: The cable group covers RG-174, RG-188, RG-188A, RG-316, LMR-100, and M17/119-RG174 — the thin, flexible 50- to 75- Ohm coax you see on surveillance cameras, lab patch cables, and short-run data links.

What the Kit Includes and How It Goes Together

The kit ships as 5 separate pieces — one connector body with a male pin already staked, one loose center contact (spare or for a different cable prep), one crimp ferrule, one PTFE insulator, and one sleeve. Termination is all-crimp: the center contact crimps onto the signal conductor, the shield braid folds over the ferrule, and the sleeve slides over the crimp. No solder, no pot — just a clean crimp with the right die for the cable diameter.

Frequently asked questions

What cable types are compatible with the 031-80106?

The 031-80106 is compatible with RG-174, RG-188, RG-188A, RG-316, LMR-100, and M17/119-RG174 cables. These are thin, flexible coax types commonly used in surveillance, lab, and short-run data applications.

What is included in the 031-80106 kit?

The kit includes 5 pieces: one connector body with male pin, one center contact, one crimp ferrule, one PTFE insulator, and one sleeve. All components are included to terminate one cable end.
