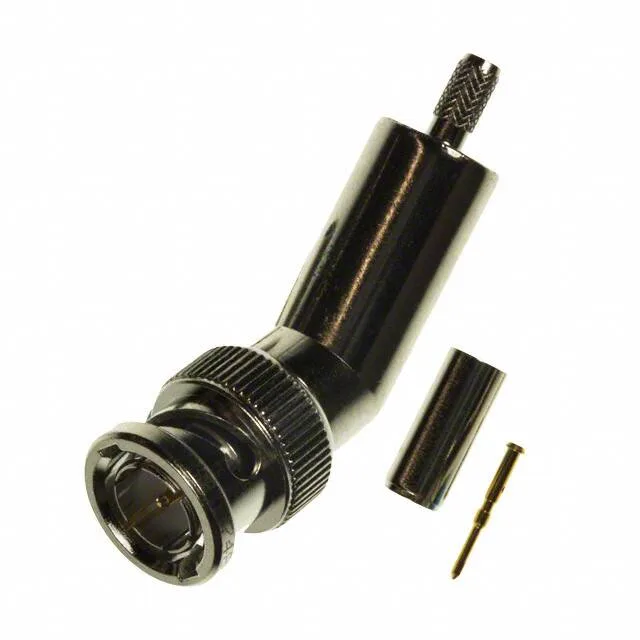

Amphenol RF BNC plug, 75 Ohm, male pin, crimp termination, for RG-179/187 cable, 3 GHz max, 500 V, 500 mating cycles, nickel body, gold center contact, bulk package includes connector, contact, ferrule.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line), 45° Angle |
| Connector type | Plug, Male Pin |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 3 GHz |
| Cable group | RG-179, 179A, 179B, 187, 187A, Belden 9221, M17/94-RG179 |
| Operating temperature | -40°C~85°C |
| Body material | Zinc Alloy |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Brass |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 75Ohm |
| Body finish | Nickel |
| Mating cycles | 500 |
| Insertion loss | 0.2dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp |
| Center contact plating | Gold |
The 031-80401: This is the standard 75 Ohm interface for composite video, CCTV, and telecom baseband signals where the 50 Ohm BNC would create an impedance mismatch.
Rated to 3 GHz with 0.2 dB insertion loss — the 75 Ohm impedance holds the return loss low across the video band (DC to a few hundred MHz) and into low microwave frequencies. The 500 V voltage rating covers the peak levels on video lines and telecom signalling.
Use it on 75 Ohm cable (RG-179, RG-187, Belden 9221) and mate it with a 75 Ohm BNC jack to avoid impedance mismatch.
RG-179, 179A, 179B, 187, 187A, Belden 9221, and M17/94-RG179. The crimp ferrule and centre contact are sized for these cable diameters.
It is a single-termination kit — order one per cable end.
500 mating cycles — the gold-plated centre contact and nickel body finish support repeated connect/disconnect in field-service or test-equipment use.
