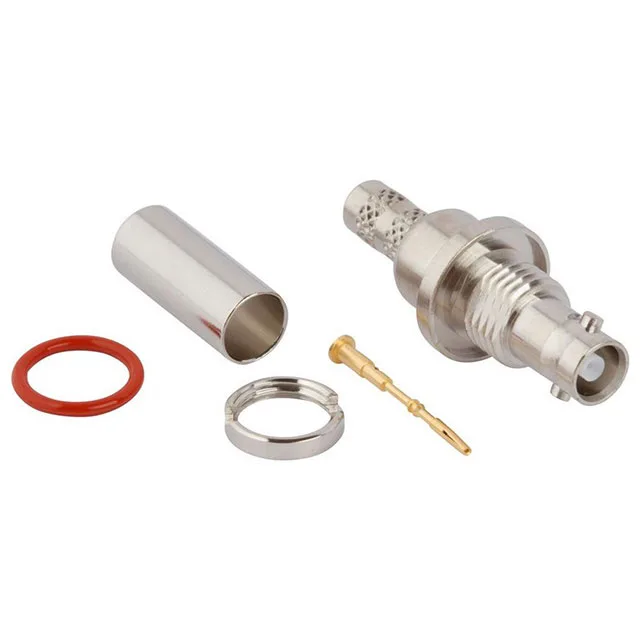

034-1046 — Amphenol product photo
Amphenol

034-1046 Amphenol RF BNC HD Jack, 75 Ohm, 4 GHz, Bulkhead

MPN034-1046
Active

Amphenol RF BNC HD jack, female socket, 75 Ohm impedance, 4 GHz max, panel mount bulkhead, crimp termination, gold center contact, 500 mating cycles.

$11.9800Ref. price · indicative, final on quote
034-1046 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

034-1046 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Frequency - max4 GHz
Mounting featureBulkhead - Front Side Nut
Cable groupRG-122, 180, 180A, 180B, 195, Belden 1855, 1865A
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze
PackageBulk
Includes2 pcs - 1 Connector, 1 Nut
Impedance75Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

75 Ohm HD BNC Jack for Broadcast and Video

Shield and centre contact are both crimp-terminated, which is the standard field-termination method for this cable group; no soldering required at the connector end.

Cross-Shop: Plug vs Jack

The 034-1026 is the mating plug (male pin) for this jack — same 75 Ohm HD BNC interface, same cable group, same 4 GHz ceiling. The plug ships as a 3-piece kit (connector, contact, ferrule) versus the jack's 2-piece kit (connector, nut). If you are building a cable assembly, the 034-1026 plug mates directly with the 034-1046 jack; the pair covers one complete interconnect.

Frequently asked questions

What cables are compatible with 034-1046?

RG-122, 180, 180A, 180B, 195, and Belden 1855, 1865A.

Does 034-1046 come with a mounting nut?

Yes — the kit includes the connector and the front-side bulkhead nut (2 pieces total). No separate hardware order needed for panel mounting.
