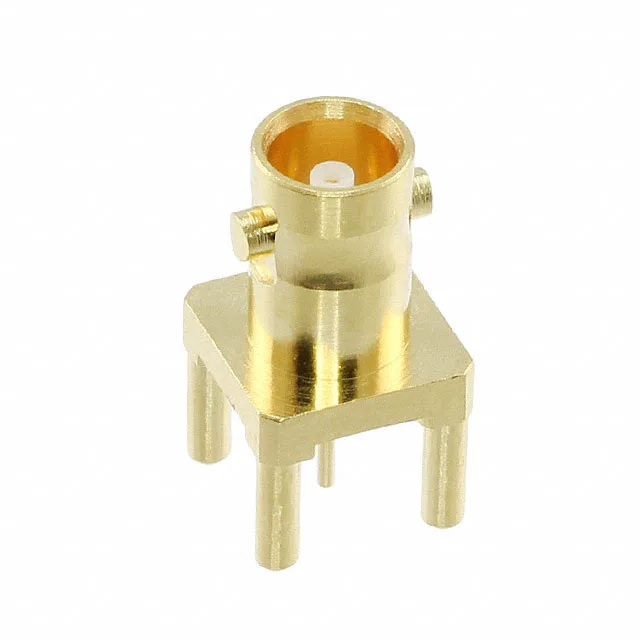

Amphenol 034-1065-12G HD-BNC Jack, 75 Ohm, 18 GHz

MPN034-1065-12G
Active

Amphenol HD-BNC™, Jack, Female Socket, 75 Ohm, 18 GHz, Through Hole, Solder, Gold Body, 500 Mating Cycles, Bulk.

$6.5000Ref. price · indicative, final on quote
034-1065-12G datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

034-1065-12G Technical Specifications
ParameterValue
Mounting typeThrough Hole
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Frequency - max18 GHz
Operating temperature-65°C~165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Impedance75Ohm
Body finishGold
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

The 034-1065-12G: This connector is built for high-frequency video distribution, broadcast equipment, and test instrumentation where the 75 Ohm path and HD-BNC interface are specified.

The 75 Ohm impedance matches standard video and data distribution cabling — Belden 1855A and similar — so the connector does not create a reflection point in the line. The 18 GHz maximum frequency is well above the 3 GHz ceiling of a standard BNC, which means this HD-BNC variant handles higher-order digital video signals and instrumentation bandwidth without rolling off the upper harmonics.

Through-hole mounting with solder termination for both the shield and the centre contact. The centre contact solder cup accepts the signal conductor. No crimp tooling needed — this is a solder-in-place jack for PCB mounting.
