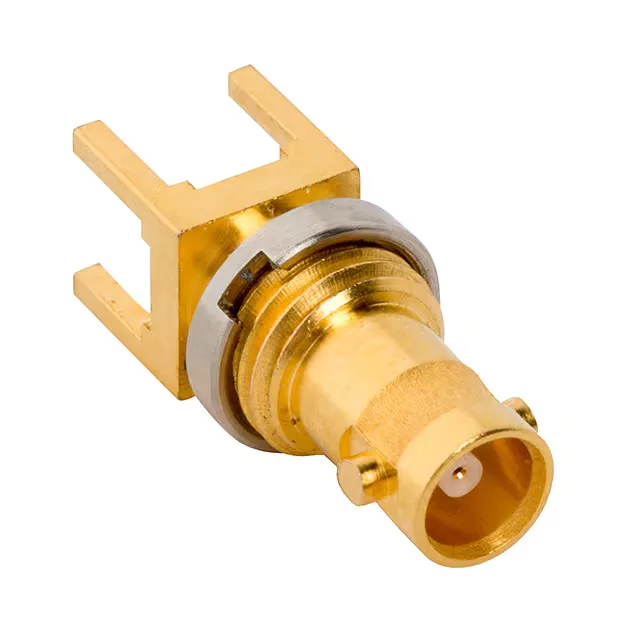

75 Ohm BNC HD Jack for High-Bandwidth Video and Test
The HD (High Density) BNC body keeps the same bayonet interface as a standard BNC but handles frequencies up to 18 GHz, well beyond the typical BNC ceiling, so it carries high-bandwidth serial digital video or RF signals without the insertion loss a standard BNC would show above 4 GHz.
18 GHz Bandwidth and 500 Mating Cycles
Rated to 18 GHz maximum frequency, this jack delivers the bandwidth for 12G-SDI and beyond — a standard BNC tops out around 4 GHz, so the HD design matters when the signal path runs at multi-gigabit rates. The 500 mating cycles, backed by gold-on-gold contacts (centre contact gold-plated beryllium copper, body gold-plated brass), mean the connector survives repeated reconnections in field-test or patch-panel duty without the centre contact fretting or losing return loss.
Termination and Field Fit
On site, you can re-pin it with a soldering iron and a basic kit — no special crimp tool needed — so it crosses into an existing 75 Ohm harness if the cable is terminated with a compatible BNC HD plug.
