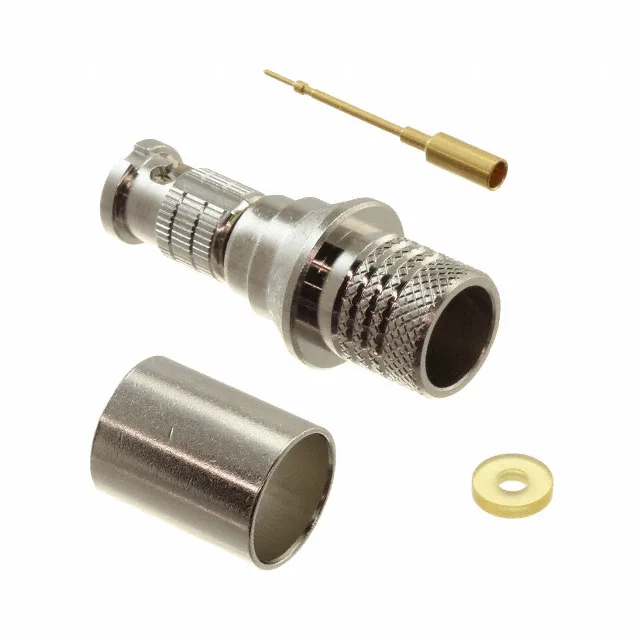

034-1132-12G — Amphenol product photo
Amphenol

Amphenol RF 034-1132-12G BNC HD Plug, 75 Ohm, 18 GHz, Crimp

MPN034-1132-12G
Active

Amphenol RF BNC HD plug, 75 Ohm, 18 GHz, crimp termination, nickel brass body, gold center contact, includes connector + contact + ferrule, bulk.

$13.6200Ref. price · indicative, final on quote
034-1132-12G datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

034-1132-12G Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Frequency - max18 GHz
Cable groupBelden 4731R, 4731P
Operating temperature-30°C~85°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance75Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

75 Ohm BNC HD Plug for Broadcast Video Coax

It's a free-hanging, in-line plug with a bayonet lock for quick mate/demate in patch panels or camera rigs. Rated to 18 GHz, with 500 mating cycles, gold-plated phosphor bronze centre contact, and PTFE dielectric.

Cable Compatibility and Termination Kit

This plug is engineered for Belden 4731R and 4731P coax cables — precision video cables with a solid or stranded centre conductor and a 75 Ohm impedance match.

Construction and Finish

PTFE dielectric keeps the dielectric constant stable across the frequency range and won't absorb moisture in humid broadcast environments.

Frequently asked questions

Where can I buy 034-1132-12G?

Buyers need immediate source to purchase and check stock levels.

What cables are compatible with 034-1132-12G?

Ensures the connector matches the cable group (Belden 4731R/4731P) for correct fit.

What is the price and lead time for 034-1132-12G?

Critical for sourcing decisions and budget planning.

Does 034-1132-12G include the contact and ferrule?

Buyers need to know if the kit includes all necessary parts for assembly.

Is there a direct replacement or equivalent for 034-1132-12G?

Alternative parts help mitigate supply chain or availability issues.

What is the impedance of 034-1132-12G?

75 Ohm specification must be verified for signal integrity in video/CATV applications.
