The 034-5011: This plug accepts RG-178, 178A, 178B, 196, 196A, and M17/93-RG178 — the thin-diameter double-shielded coax used in tight-bend RF runs. The 500-cycle mating life means this plug holds up in test setups that get reconnected weekly.

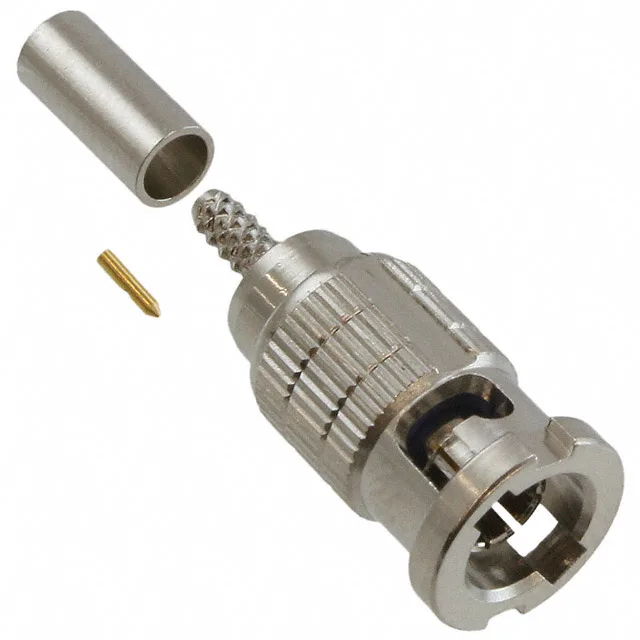

Amphenol 034-5011 BNC HD plug, male pin, 50 Ohm, 6 GHz, bayonet lock, solder contact, crimp shield, free-hanging, includes connector + contact + ferrule.
$8.2214Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Mounting type | Free Hanging (In-Line) |
| Connector type | Plug, Male Pin |
| Fastening type | Bayonet Lock |
| Frequency - max | 6 GHz |
| Cable group | RG-178, 178A, 178B, 196, 196A, M17/93-RG178 |
| Operating temperature | -65°C ~ 165°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Phosphor Bronze |
| Package | Bulk |
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 50 Ohms |
| Body finish | Nickel |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Solder |
| Center contact plating | Gold |
Product details
Frequently asked questions
What cables are compatible with 034-5011?
The 034-5011 is designed for RG-178, 178A, 178B, 196, 196A, and M17/93-RG178 coax cables. The centre contact solders to the signal wire, and the ferrule crimps over the braid and jacket.
What is the impedance and frequency rating of 034-5011?
The PTFE dielectric and gold-plated centre contact maintain consistent impedance through the signal path.
