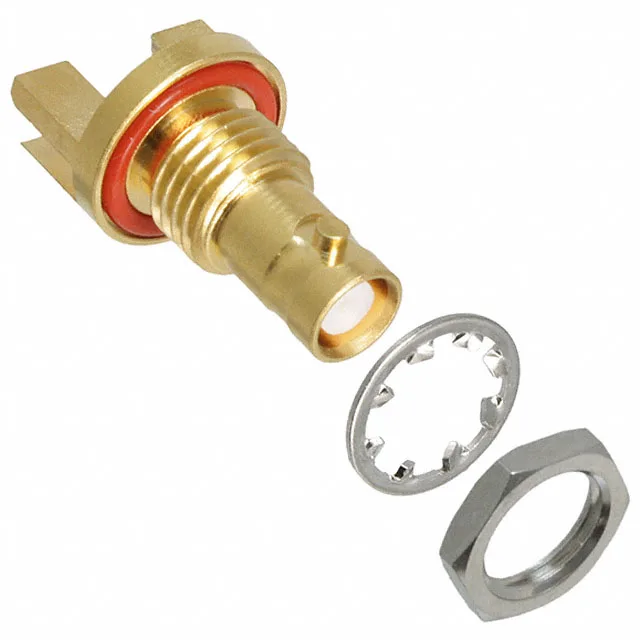

The 034-5013: This jack mounts to a board edge or panel via the bulkhead front-side nut — the kit includes the lockwasher and nut, so you don't need to source them separately. The shield and centre contact both terminate by solder, which gives a reliable RF ground and signal connection when the pad is prepared correctly. The bayonet lock mates fast and holds under vibration, rated for 500 mating cycles.
034-5013 Amphenol RF BNC HD Jack, 50 Ohm, 6 GHz, Gold
MPN034-5013
Active
Amphenol RF BNC, HD, jack, female socket, 50 Ohm, 6 GHz, gold body, bulk package, includes lockwasher and nut.
$1.1600Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Board Edge, End Launch; Panel Mount |
| Connector type | Jack, Female Socket |
| Fastening type | Bayonet Lock |
| Frequency - max | 6 GHz |
| Mounting feature | Bulkhead - Front Side Nut |
| Operating temperature | -65°C~165°C |
| Body material | Brass |
| Housing color | Gold |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Beryllium Copper |
| Package | Bulk |
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut |
All specifications
| Parameter | Value |
|---|---|
| Impedance | 50Ohm |
| Body finish | Gold |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Gold |
Product details
Frequently asked questions
Does 034-5013 include mounting hardware?
Yes, the bulk package includes 3 pieces: the connector, one lockwasher, and one nut for panel mounting.
Is 034-5013 RoHS compliant?
The evidence does not explicitly state RoHS compliance. Verify with the manufacturer or your compliance team before specifying.
