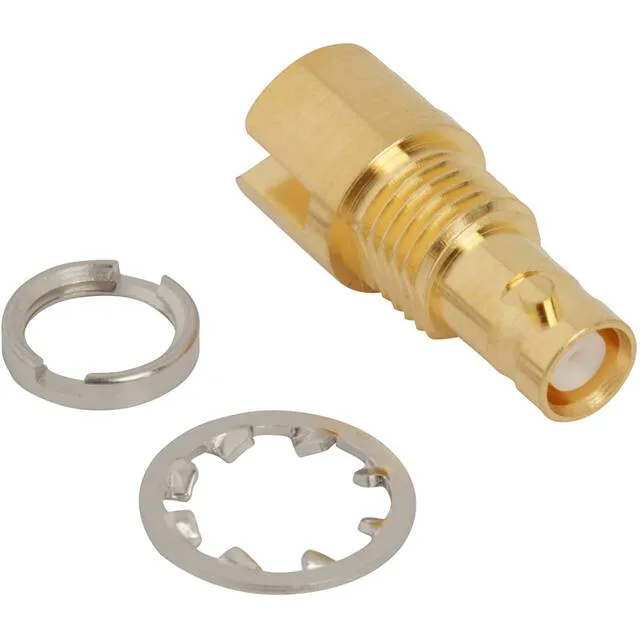

Amphenol RF 034-5037 BNC HD Jack, 50 Ohm, 6 GHz

MPN034-5037
Active

Amphenol RF BNC, HD series, 034-5037, Jack, Female Socket, 50Ohm, Bayonet Lock, Board Edge/End Launch/Panel Mount, Solder Termination, Gold Body, Bulk

$9.0600Ref. price · indicative, final on quote
034-5037 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

034-5037 Technical Specifications
ParameterValue
Mounting typeBoard Edge, End Launch; Panel Mount
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Frequency - max6 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-65°C~165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Includes3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Impedance50Ohm
Body finishGold
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

Panel-Mount BNC HD Jack for 6 GHz Signal Paths

The 034-5037: It mounts via bulkhead with a front-side nut, or as a board-edge end-launch connector — the bayonet lock provides quick mate and unmated for field access.

What the 6 GHz and 500-Cycle Ratings Mean for Your RF Link

The 6 GHz max frequency is the upper limit for this jack. The 500 mating cycles are rated for the gold-plated contacts.

Mounting and Termination — What Ships in the Box

The 034-5037 ships as a kit: one BNC HD jack, one lockwasher, and one bulkhead nut. The mounting feature is bulkhead with front-side nut, and the mounting type is listed as board edge, end launch, or panel mount. The package is bulk.

Frequently asked questions

What is the mounting style for 034-5037?

The 034-5037 mounts via bulkhead with a front-side nut, and is also listed for board edge or end launch mounting.

Does 034-5037 come with mounting hardware?

Yes, the kit includes the connector, one lockwasher, and one nut.
