Amphenol 034-5042

034-5042 Amphenol RF BNC HD Plug, 50 Ohm, 6 GHz, Crimp

MPN 034-5042
Active

Amphenol RF BNC HD plug, male pin, 50 Ohm, 6 GHz, crimp termination, nickel body, gold center contact, for RG-55/142/223/400 cable.

$10.1500 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

034-5042 key specifications
ParameterValue
MountingFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Frequency - max6 GHz
Cable groupRG-55, 142, 223, 400
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze
PackageBulk

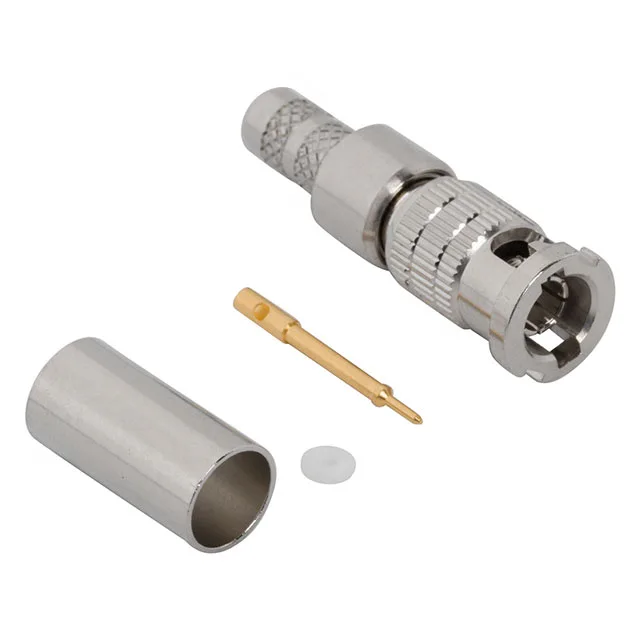

Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule

All specifications

034-5042 additional specifications
ParameterValue
Impedance50Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

The 034-5042: It handles signals up to 6 GHz — well past the standard BNC's 4 GHz ceiling — making it a fit for test equipment, broadcast video, and instrumentation where bandwidth headroom matters. The contact termination is crimp, and the shield is also crimped — no solder, no heat gun, just a standard hex crimp tool for the cable jacket and braid. The included ferrule compresses over the braid for a gas-tight shield termination that holds up to 500 mating cycles.

Cable group covers RG-55, RG-223, and RG-400 — all 50 Ohm coax. The silver housing color is the bare nickel finish — no paint to chip or flake in high-vibration environments.

MPN
034-5042
