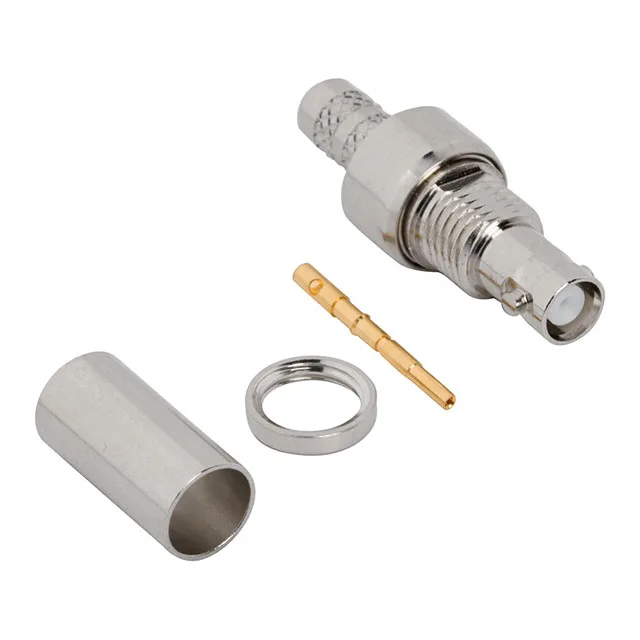

034-5063 — Amphenol product photo
Amphenol

034-5063 Amphenol RF BNC HD Jack, 50 Ohm, 6 GHz

MPN034-5063
Active

Amphenol RF BNC HD jack, female socket, 50 Ohm, 6 GHz, panel mount bulkhead, crimp termination, includes connector/contact/ferrule/nut, nickel body, gold center contact.

$10.2000Ref. price · indicative, final on quote
034-5063 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

034-5063 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Frequency - max6 GHz
Mounting featureBulkhead - Front Side Nut
Cable groupRG-55, 142, 223, 400
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Includes4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Nut
Impedance50Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

BNC HD Bulkhead Jack Kit for RG-55/142/223/400

The Amphenol RF 034-5063 is a BNC HD (high-density) jack, female socket, configured as a panel-mount bulkhead kit. It ships as four pieces: the connector body, one center contact, one crimp ferrule, and one front-side mounting nut. The HD form factor packs more connectors per panel area than standard BNC while retaining the same bayonet lock and electrical performance.

Cable Group and Termination — What Goes Where

This kit is tooled for cable group RG-55, 142, 223, 400. The included crimp ferrule and center contact are sized for those cable diameters and dielectric dimensions.

Mounting and Mating — Panel Fit and Bayonet Lock

The nickel-plated brass body and silver housing color are standard for indoor and sheltered outdoor RF enclosures.

Frequently asked questions

Does 034-5063 include all mounting hardware?

No additional hardware is needed for a standard bulkhead installation.
