Amphenol 034-5071

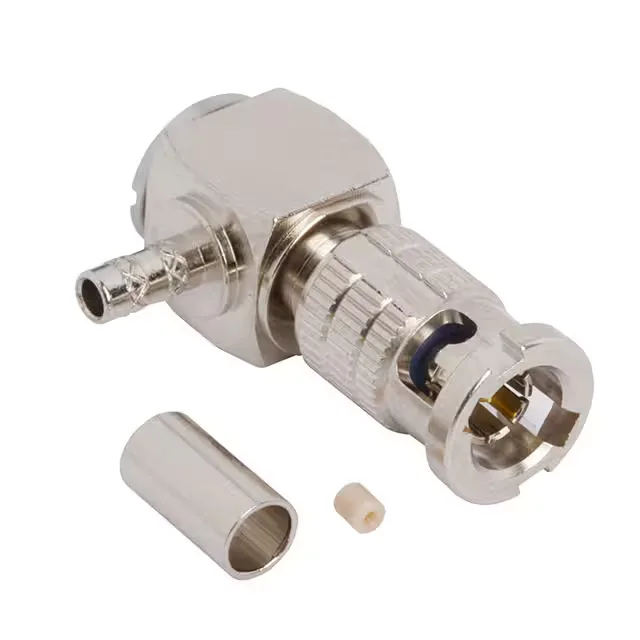

034-5071 Amphenol RF HD-BNC Plug, 50 Ohm, 6 GHz, RG-174/316

MPN 034-5071
Active

Amphenol RF HD-BNC™ series, plug, male pin, 50 Ohm impedance, 6 GHz max frequency, solder contact termination, crimp shield termination, bayonet lock, free-hanging right-angle mount, for RG-174/188/316 cable groups.

$13.9100 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

034-5071 key specifications
ParameterValue
SeriesHD-BNC™
MountingFree Hanging (In-Line), Right Angle
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Frequency - max6 GHz
Cable groupRG-174, 188, 188A, 316, M17/119-RG174
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze
PackageBag

All specifications

034-5071 additional specifications
ParameterValue
Impedance50Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

HD-BNC™ Plug for RG-174/316 — 6 GHz, 50 Ohm, Bayonet Lock

The 034-5071: It terminates RG-174, RG-188, RG-188A, RG-316, and M17/119-RG174 cables — a common set for test leads, patch cables, and instrumentation harnesses. The HD-BNC body is smaller than a standard BNC, so it fits tighter panel layouts without sacrificing the 50 Ohm impedance path.

Cable Fit and Termination — Solder Center, Crimp Braid

This plug accepts RG-174, RG-188, RG-188A, RG-316, and M17/119-RG174 — all 0.100-inch-diameter class cables with a solid or stranded center conductor. The center pin is soldered (phosphor bronze, gold-plated), and the shield braid is crimped using a standard hex die for the ferrule OD. The dielectric is PTFE, so the center conductor stays centered during soldering and the impedance holds through the transition. If your reel has RG-58 or RG-59, this is the wrong body — match the cable group before you cut.

RF Performance and Mechanical Life

Rated to 6 GHz, the 034-5071 covers the full L-band through C-band for many RF test and broadcast applications — well beyond the 4 GHz ceiling of a standard BNC. The 500 mating cycles mean this plug holds up in patch-panel or field-test use where connectors get swapped daily.

MPN
034-5071
