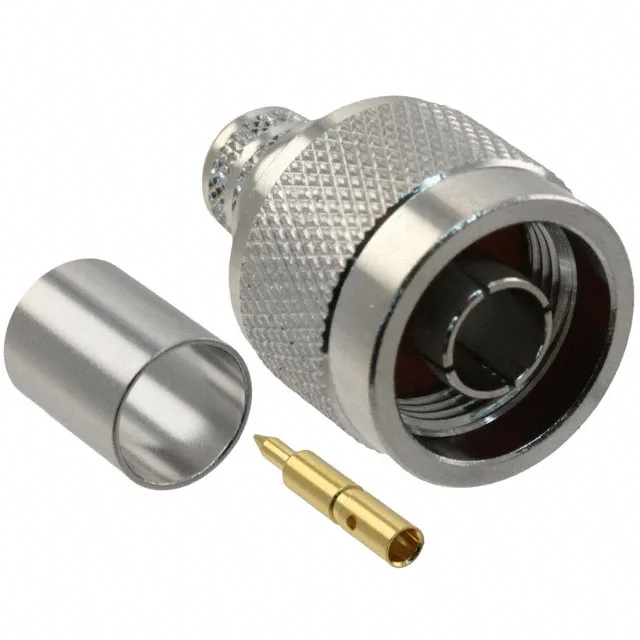

082-4426-11RFX — Amphenol product photo
Amphenol

082-4426-11RFX N-Type Plug, 50 Ohm, 11 GHz, 1500 V

MPN082-4426-11RFX
Active

Amphenol RF 082-4426-11RFX N-type plug, male pin, 50 Ohm, 11 GHz, 1500 V, crimp termination, RG-8/9/213 cable group, gold center contact, nickel body, bulk.

$10.3800Ref. price · indicative, final on quote
082-4426-11RFX datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

082-4426-11RFX Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeThreaded
Voltage rating1500 V
Frequency - max11 GHz
Cable groupRG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, 393
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.15dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

N-Type Plug for RG-8 Class Coax — 50 Ohm, 11 GHz, 1500 V

The 082-4426-11RFX: The 50 Ohm impedance and 11 GHz maximum frequency cover L-band through X-band applications — broadcast transmitters, base-station antennas, and high-power RF amplifiers where the N interface's threaded coupling and air dielectric provide repeatable, low-VSWR performance. The 1500 V voltage rating, supported by the PTFE dielectric, suits high-power RF paths where a standard BNC or TNC would flash over under peak envelope power.

Crimp Termination and Cable Fit

The listed cable group covers RG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, and 393 coaxial cables.

Electrical and Mechanical Ratings

Insertion loss is 0.15 dB.

Frequently asked questions

What cable groups does the 082-4426-11RFX support?

The 082-4426-11RFX accepts RG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, and 393 coaxial cables — the common 0.405-inch-diameter types used in medium-power RF feeder runs.
