Amphenol 082-5375-RFX

082-5375-RFX N-Type Plug, 50 Ohm, 11 GHz, Crimp Kit

MPN 082-5375-RFX
Active

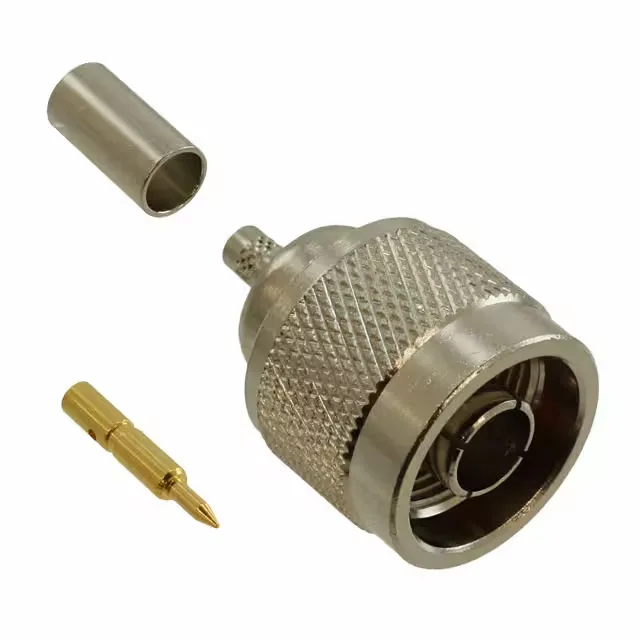

Amphenol RF 082-5375-RFX N-type plug, male pin, 50 Ohm, 11 GHz, 1500 V, crimp termination, bulk pack, includes connector + contact + ferrule.

$11.1700 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

082-5375-RFX key specifications
ParameterValue
MountingFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeThreaded
Voltage rating1500 V
Frequency - max11 GHz
Cable groupRG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk

All specifications

082-5375-RFX additional specifications
ParameterValue
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.15dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

What This N-Type Plug Covers and What It Doesn't

Cable Fit — Which Coax This Plug Accepts

This plug is designed for RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, and 9907. If your cable isn't on that list, the impedance match and mechanical retention won't be guaranteed.

Why the 11 GHz Ceiling Matters for Your Link Budget

At 11 GHz, the insertion loss is rated at 0.15 dB — that's the signal lost through the connector body, not the cable. For a multi-connector run, each junction adds that loss, so a 0.15 dB spec keeps the cumulative hit manageable.

The 082-4425-1003 is the same N-type plug, same 50 Ohm impedance, same 11 GHz ceiling, and same 1500 V rating — but it's built for RG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, and 393. The cable group is the only real difference: if your BOM calls for RG-58 or LMR-195, the 082-5375-RFX is the correct pick; if you're running RG-8 or 213, step to the 082-4425-1003. Everything else — mating cycles, insertion loss, materials — is identical.
