N-Type Jack for 11 GHz Signal Paths

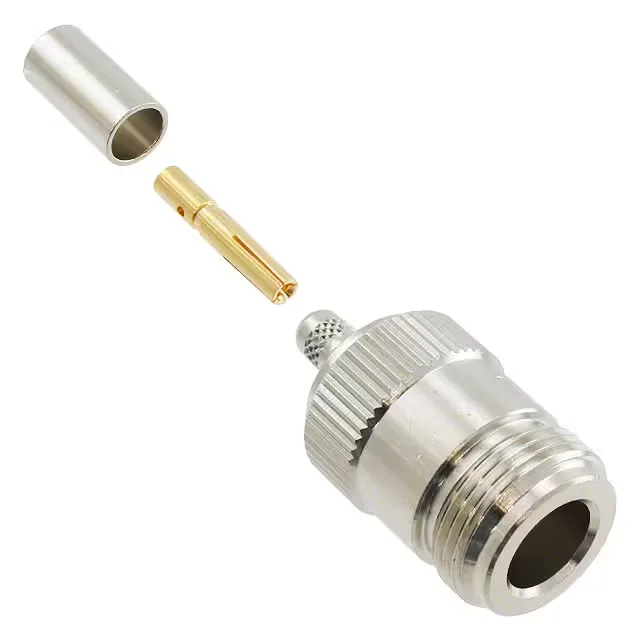

It comes as a 3-piece kit — connector body, contact, and ferrule — in bulk packaging, intended for field termination onto a range of coax cables including RG-58, RG-141, RG-303, LMR-195, and Belden B7806A. The 1500 V voltage rating and PTFE dielectric give it the headroom for high-power RF applications, while the 0.15 dB insertion loss keeps the signal clean through the mated pair.
This jack terminates with a crimp on the shield and either crimp or solder on the centre contact — choose solder for a more controlled joint in low-volume builds, crimp for repeatable production. The cable group covers the common 50 Ohm coax types: RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, and 9907. The threaded fastening and 500 mating cycles mean it survives repeated connect-disconnect in test setups or field maintenance without galling the threads.
Environmental and Mechanical Specs
The PTFE dielectric holds impedance stable across that range, so the 11 GHz frequency ceiling stays usable in real thermal conditions.
