N-Type Bulkhead Jack for RG-58 and LMR-195 Cable Runs

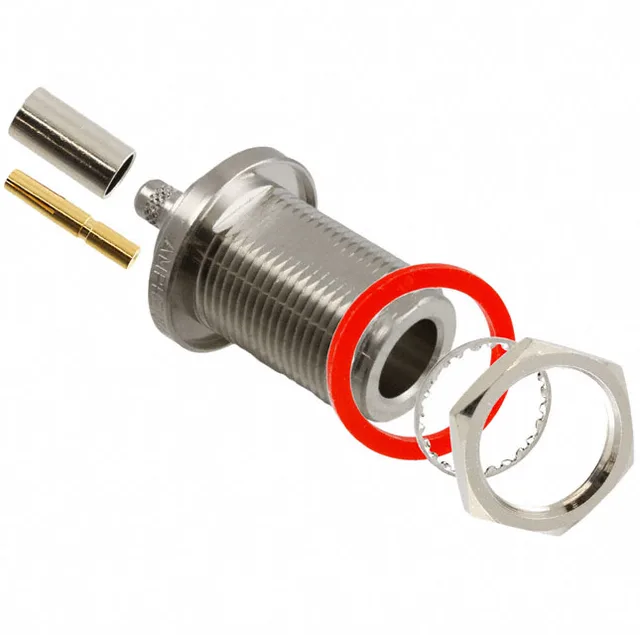

The 082-5378-RFX: It terminates to cable groups including RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, and 9907, making it a standard choice for antenna feeds, base station jumpers, and test equipment interconnects. The connector ships as a 6-piece kit: one connector body, one contact, one ferrule, one lockwasher, one nut, and one spacer — all the hardware needed for a single bulkhead installation.
RF Performance and Environmental Reach
Rated for 50 Ohm impedance with a maximum frequency of 11 GHz and insertion loss of 0.15 dB, this jack supports sub-6 GHz and mid-band 5G NR applications with headroom to spare. The weatherproof ingress protection, combined with a nickel-plated brass body and gold-plated phosphor bronze center contact, resists corrosion in humid or salt-spray environments.
Crimp Termination and Cable Preparation
The threaded fastening type provides a vibration-resistant mate when torqued to the panel with the included lockwasher and nut.
No official cross-reference or direct second-source is on record, though the N-type interface is a standard per MIL-STD-348 and intermates with any compliant N-type plug.
