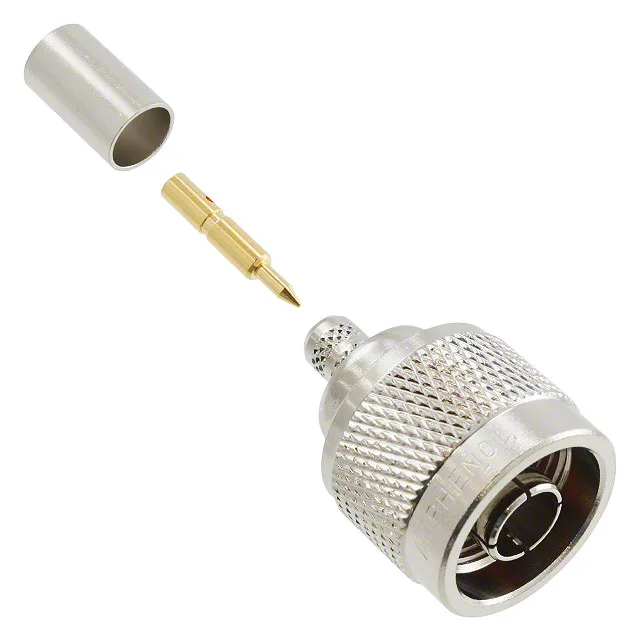

082-5380-RFX — Amphenol product photo
Amphenol

082-5380-RFX N Type Plug, 50 Ohm, 11 GHz, Weatherproof

MPN082-5380-RFX
Active

Amphenol RF 082-5380-RFX, N Type plug, male pin, 50 Ohm, 11 GHz, weatherproof, crimp termination, bulk package includes connector, contact, ferrule.

$8.8300Ref. price · indicative, final on quote
082-5380-RFX datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

082-5380-RFX Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeThreaded
Voltage rating1500 V
Frequency - max11 GHz
Ingress protectionWeatherproof
Cable groupRG-59, 59B, 62, 140, 210, Belden 8241, 8263, 8279, 9209
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.15dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

N Type Plug for Outdoor RF Runs

The 082-5380-RFX: It comes as a three-piece kit — connector body, crimp contact, and ferrule — so you terminate the cable in one operation. The threaded coupling and weatherproof rating mean this connector holds its seal on antenna feeds, base station jumpers, and outdoor test points where a BNC or SMA would let moisture creep past the interface.

This plug accepts RG-59, RG-62, RG-140, RG-210, and the Belden equivalents 8241, 8263, 8279, and 9209.

Weatherproofing Reality

Weatherproof only when fully mated and the threaded coupling is torqued down — the seal relies on the interface compression between the plug and jack faces. If the connector sits unmated on a dangling cable between shifts, the open end is not sealed. Cap the open half with a weatherproof N Type dust cap to keep the dielectric dry. The PTFE insulator inside handles -65°C to 165°C, so this connector survives roof-top thermal cycling without the centre conductor shifting.

Frequently asked questions

What cable types does 082-5380-RFX work with?

This plug works with RG-59, RG-59B, RG-62, RG-140, RG-210, and Belden 8241, 8263, 8279, and 9209 coax cables. The centre contact and shield both crimp, so use the correct hex die for the cable diameter.

What is the impedance and frequency rating of 082-5380-RFX?

The 082-5380-RFX is a 50 Ohm N Type plug rated to 11 GHz maximum frequency. The 50 Ohm impedance is standard for most RF systems; above 11 GHz the connector's geometry no longer maintains a clean transmission line.
