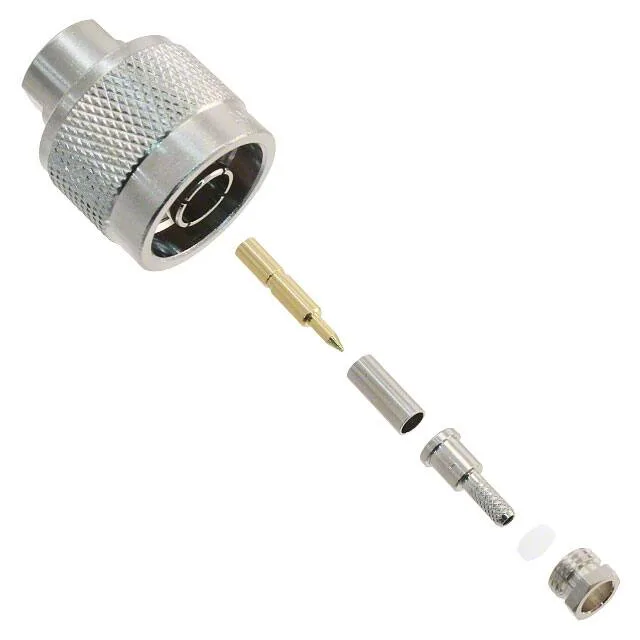

082-6034 — Amphenol product photo
Amphenol

Amphenol 082-6034 N-Type Plug Kit, 6 GHz, 50 Ohm

MPN082-6034
Active

Amphenol N Type plug, male pin, 50 Ohm, 6 GHz, 0.15 dB insertion loss, 1500 V, crimp/solder termination, free hanging, includes 6-piece kit, Bulk.

$12.6400Ref. price · indicative, final on quote
082-6034 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

082-6034 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeThreaded
Voltage rating1500 V
Frequency - max6 GHz
Cable groupRG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes6 pcs - 1 Connector, 1 Barrel, 1 Contact, 1 Ferrule, 1 Insulator, 1 Nut
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.15dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp or Solder
Center contact platingGold

Product details

N-Type Field-Install Kit for Small-Diameter Coax

The Amphenol 082-6034 is an N-Type plug, male pin, delivered as a complete field-install kit — 6 pieces: one connector body, one barrel, one contact, one ferrule, one PTFE insulator, and one coupling nut. This is not a bare plug; it is a one-line-item kit for building an N-Type termination on small-diameter coax in the field.

The N-Type interface is specified to 6 GHz with 0.15 dB insertion loss. The 1500 V rating covers RF duty.

The kit lists RG-174, RG-188A, RG-316, LMR-100, and M17/119-RG174. Contact termination is crimp or solder.

Temperature Range and Deployment Context

This is the spec that tells you the kit is built for outdoor, industrial, or defense environments — antenna mounts in cold climates, engine-bay test harnesses, or sealed enclosures near heat sources. The gold-plated centre contact and nickel-plated brass body resist corrosion through those temperature swings. The threaded coupling nut gives a vibration-resistant mate that stays tight under thermal cycling.

Frequently asked questions

Does the 082-6034 kit include a ferrule and insulator?

Yes, the kit includes 6 pieces: one connector body, one barrel, one contact, one ferrule, one PTFE insulator, and one coupling nut — everything needed for a field termination.
