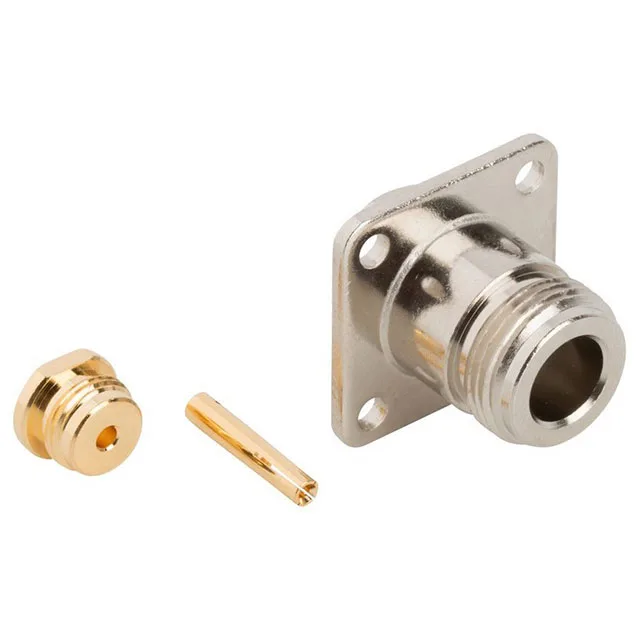

082-6098-RFX — Amphenol product photo
Amphenol

082-6098-RFX N-Type Jack, 50 Ohm, 11 GHz, Panel Mount

MPN082-6098-RFX
Active

Amphenol 082-6098-RFX N-type jack, female socket, 50 Ohm, 11 GHz, panel mount flange, solder termination, RG-405 semi-rigid cable, 500 mating cycles, gold-plated center contact.

$12.0362Ref. price · indicative, final on quote
082-6098-RFX datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

082-6098-RFX Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Female Socket
Fastening typeThreaded
Voltage rating1500 V
Frequency - max11 GHz
Mounting featureFlange
Cable groupRG-405 (.085\", .086\" Semi Rigid)
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze
PackageBulk
Includes4 pcs - 1 Connector, 1 Contact, 1 Insulator, 1 Nut
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.15dB
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

N-Type Jack for Semi-Rigid Coax — Panel-Mount RF Interconnect

The 082-6098-RFX: The connector ships as a kit: one jack body, one contact, one insulator, and one nut — everything needed for a single termination. The 500-cycle mating life and gold-plated phosphor bronze center contact tell you this jack is built for repeated connect/disconnect duty — think test equipment, antenna feeds, or instrumentation panels where the cable gets swapped more than once.

Cable Fit and Termination — What Goes Where

This jack accepts RG-405 semi-rigid coax — the.085" or.086" diameter variant. The center contact terminates via solder; the shield also solders to the body. The threaded fastening and flange mount give a vibration-resistant panel attachment, and the 1500 V voltage rating provides headroom for high-power RF signals without breakdown.

Frequently asked questions

What cable group works with 082-6098-RFX?

The 082-6098-RFX is designed for RG-405 semi-rigid coax in.085" or.086" diameter. The center contact and shield both terminate with solder.

What is the impedance of 082-6098-RFX?

The 082-6098-RFX is a 50 Ohm N-type jack, rated to 11 GHz with 0.15 dB insertion loss.
