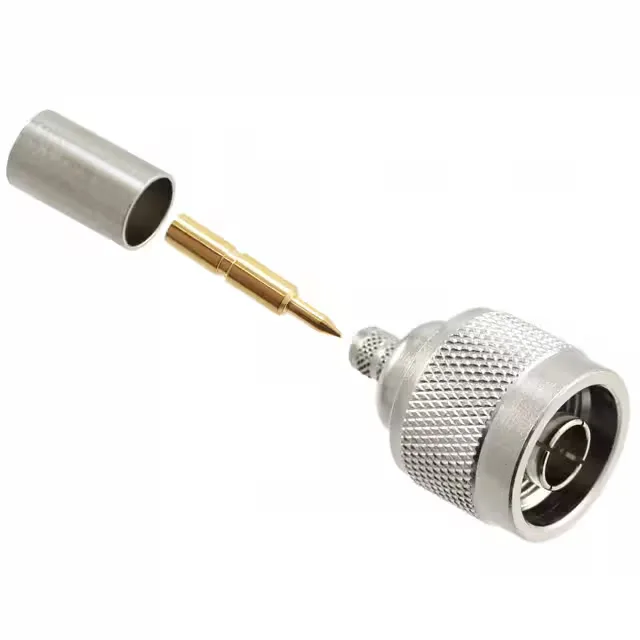

N-Type Plug Kit for RG-8X and LMR-240 — What Ships and What It Fits
The threaded coupling gives a vibration-resistant mate that holds its torque under thermal cycling, and the 500-cycle mating life means this connector is built for test-set or field-install turnover, not a one-and-done solder joint.
The 1500 V voltage rating is generous for a 50 Ohm signal line — it is sized for the breakdown margin in high-altitude or transmitter-side applications where transient spikes hit the feed.
Termination and Cable Prep — Crimp or Solder Center Contact
The center contact accepts either crimp or solder termination; the shield termination is crimp-only via the included ferrule. For RG-8X and LMR-240, the crimp die selection matters — the ferrule OD is sized for the cable jacket, not the braid alone. The white bronze body finish (a nickel-tin alloy) gives corrosion resistance that holds up in coastal or washdown environments better than plain nickel, and the brass body material keeps the thread galling risk low against stainless steel mating jacks.
